ERZ-LNA-0100-0200-20-1.5
L Band Low Noise Amplifier | 1–2 GHz | NF 1.5 dB | 20 dB Gain

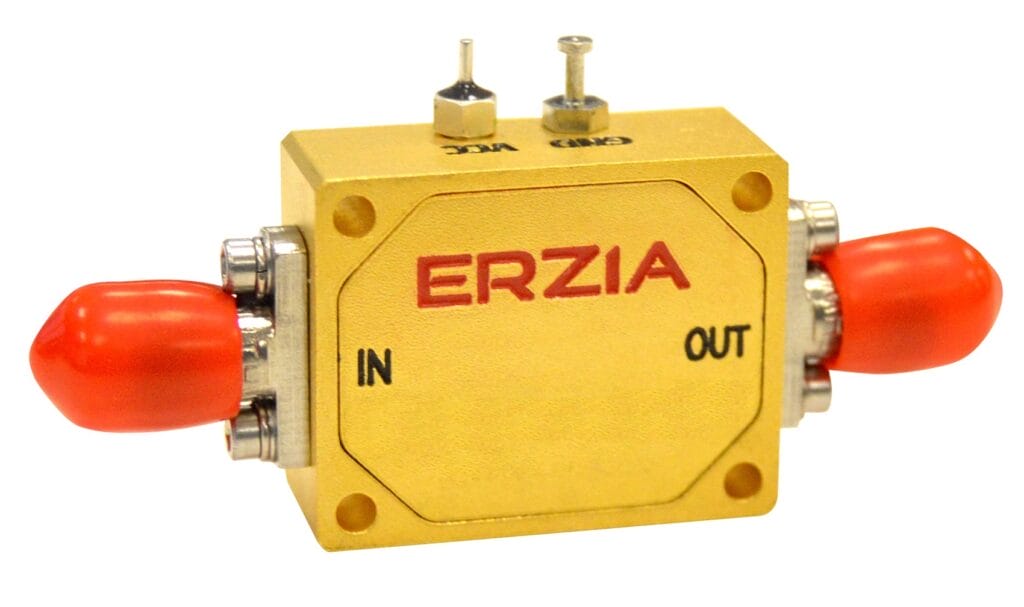

ERZ-LNA-0100-0200-20-1.5 L Band LNA

Login to see price Get a quote

Description

The ERZ-LNA-0100-0200-20-1.5 is a Low Noise Amplifier providing a gain of 20 dB with a noise figure below 2 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0100-0200-20-1.5_0

Key Features

  • Frequency Range (GHz): 1-2
  • Output Power (dBm): 20
  • Small Signal Gain (dB): 20
  • Noise Figure (dB): 1.5
  • Bias: 15V
  • Package Dimensions: 25x20x10mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 1
Frequency Stop (GHz): 2
Output Power (dBm): 20
Gain (dB): 20
Gain flatness (dB): ±1
Noise Figure (dB): 1.5
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Power supply (V): 15
Current (mA): 53.33
Power consumption (W): 0.8
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

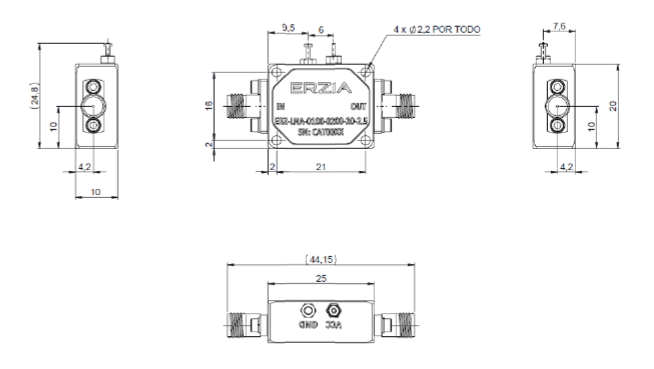

Outline Drawing

Ordering Information
