ERZ-LNA-0100-0200-10-7 L Band LNA

Login to see price Get a quote

L Band Low Noise Amplifier

Description

The ERZ-LNA-0100-0200-10-7 is a Low Noise Amplifier providing a gain of 10 dB with a noise figure of 5.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0100-0200-10-7_0

Key Features

  • Frequency Range (GHz): 1.00-2.00
  • Output Power (dBm): 18
  • Small Signal Gain (dB): 10
  • Noise Figure (dB): 5.5
  • Bias: 15
  • Package Dimensions: 16.3x17.8x7.4 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 1.00
Frequency Stop (GHz): 2.00
Output Power (dBm): 18
Gain (dB): 10.00
Gain flatness (dB): ±0.2
Noise Figure (dB): 5.5
VSWR IN: 1.2:1
VSWR OUT: 1.4:1
Power supply (V): 15±0.75
Current (mA): 66
Power consumption (W): 1
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

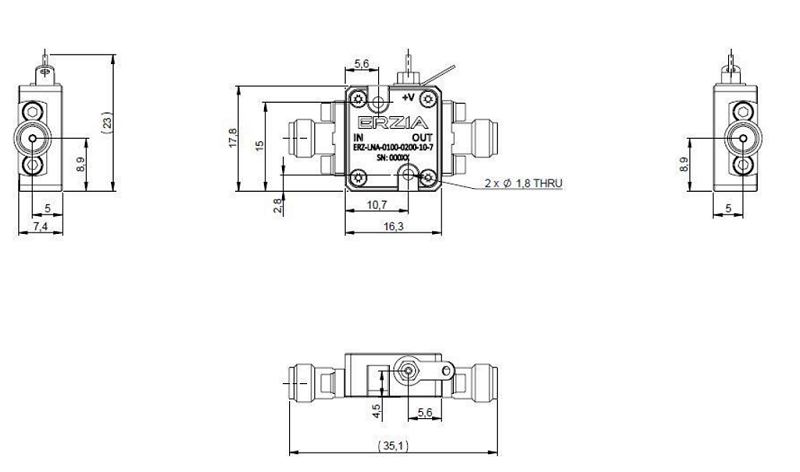

Outline Drawing
