ERZ-LNA-0070-0300-20-0.7

ERZ-LNA-0070-0300-20-0.7 L Band LNA

Login to see price Get a quote

L Band Low Noise Amplifier

Description

The ERZ-LNA-0070-0300-20-0.7 is a Low Noise Amplifier providing a gain grater than 20 dB with a noise figure lower than 1 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0070-0300-20-0.7_1

Key Features

  • Frequency Range (GHz): 0.70-3.00
  • Output Power (dBm): 21
  • Small Signal Gain (dB): 20
  • Noise Figure (dB): 0.7
  • Bias: Power supply: 12±3 V
  • Package Dimensions: 16x30x17.5
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.70
Frequency Stop (GHz): 3.00
Output Power (dBm): 21
Gain (dB): 20.00
Gain flatness (dB): ±1.5
Noise Figure (dB): 0.7
VSWR IN: 1.8:1
VSWR OUT: 1.2:1
Power supply (V): 12±3
Current (mA): 80
Power consumption (W): 0.5
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

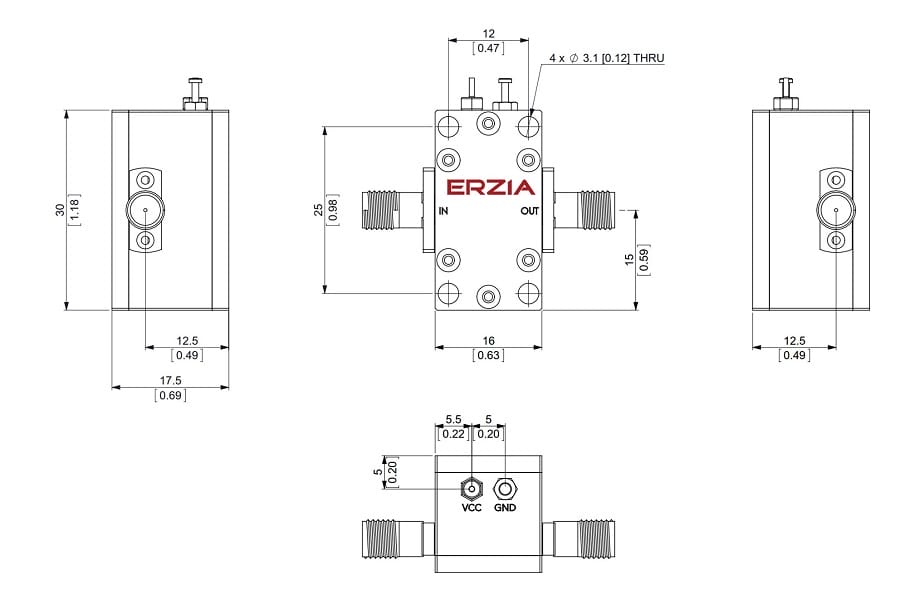

Outline Drawing

Ordering Information
