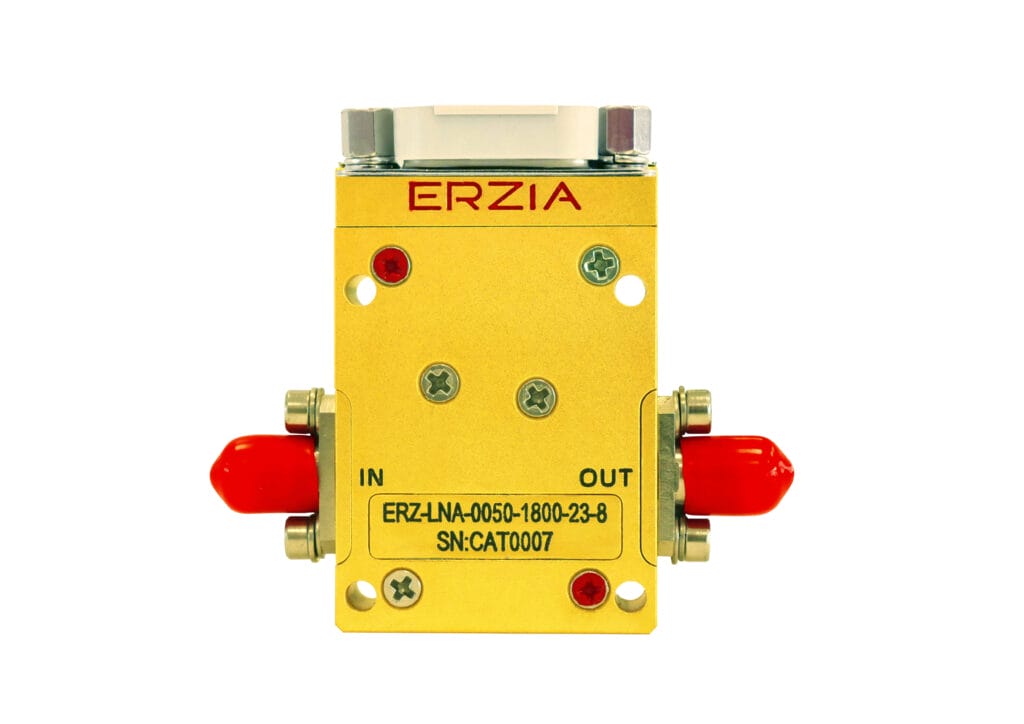

ERZ-LNA-0050-1800-23-8 Wideband LNA

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-0050-1800-23-8 is a Wideband Low Noise Amplifier with vairable gain and a noise figure of 4 dB. The compact size and modularity makes it ideal for a wide range of applications.
It comes with an internal 25dB attenuator with 0.5 dB step.

Download

PDF IconERZ-LNA-0050-1800-23-8_0

Key Features

  • Frequency Range (GHz): 0.50-18.00
  • Output Power (dBm): 16
  • Small Signal Gain (dB): 23
  • Noise Figure (dB): 4
  • Bias: 12 ±3 VDC
  • Package Dimensions: 31x45x13 mm (LxWxH)
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.50
Frequency Stop (GHz): 18.00
Output Power (dBm): 16
Gain (dB): 23.00
Gain flatness (dB): ±1.5
Noise Figure (dB): 4
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Power supply (V): 12 ±3
Current (mA): 166
Power consumption (W): 2
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

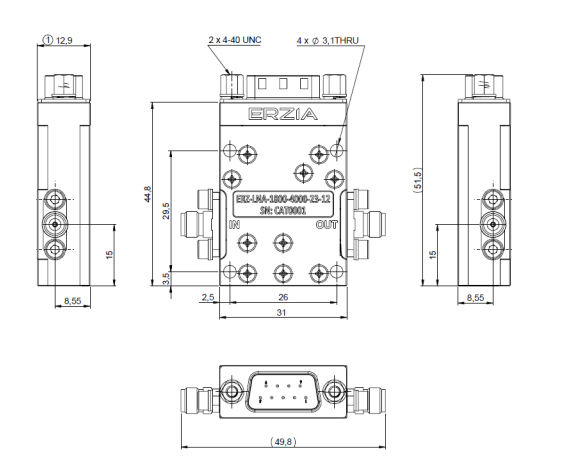

Outline Drawing

Ordering Information
