ERZ-LNA-0010-2500-14-2.5
Wideband Low Noise Amplifier
Description

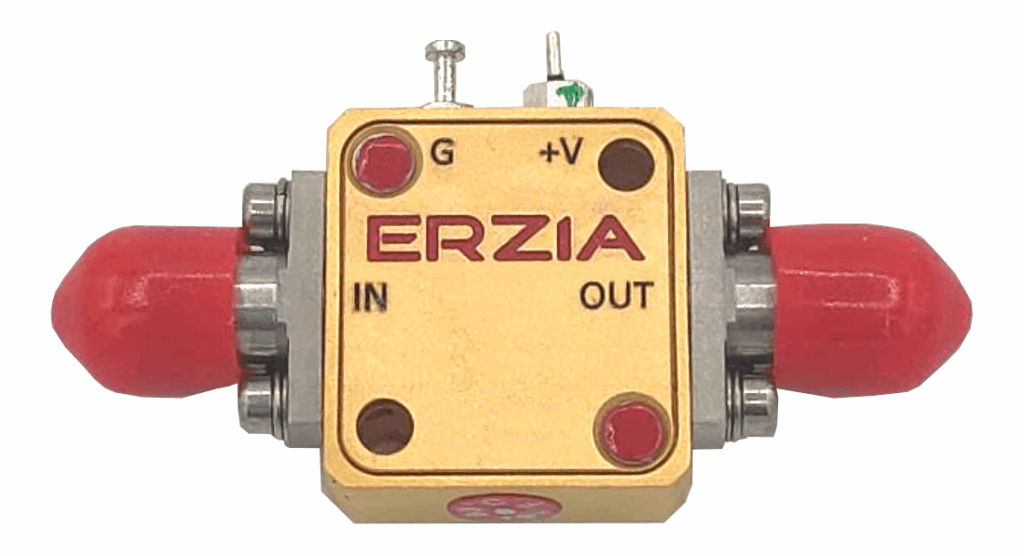

The ERZ-LNA-0000-2500-14-2.5 is a Low Noise Amplifier providing a gain of 14 dB with a noise figure of 2.5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 0.10-25.00
- Output Power (dBm): 13
- Small Signal Gain (dB): 14
- Noise Figure (dB): 2.5
- Bias: 12±3 VDC
- Package Dimensions: 16.3x17.8x7.3 mm
- Connectors: SMA Female
Specifications
| Frequency Start (GHz): | 0.10 |
| Frequency Stop (GHz): | 25.00 |
| Output Power (dBm): | 13 |
| Gain (dB): | 14.00 |
| Gain flatness (dB): | ±0.5 |
| Noise Figure (dB): | 2.5 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.5:1 |
| Power supply (V): | 12±3 |
| Current (mA): | 50 |
| Power consumption (W): | 0.6 |
| Temperature (operation) (°C): | -45 to +85 |
| Temperature (storage) (°C): | -55 to +125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

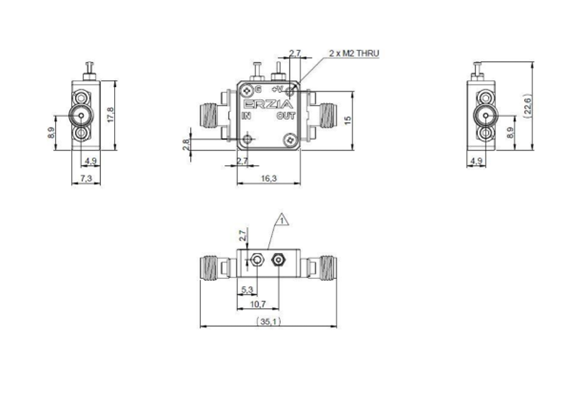

Outline Drawing
Ordering Information
