ERZ-LNA-0010-0600-18-5.5
Wideband Low Noise Amplifier | 0.1–6 GHz | NF 5.5 dB | 20 dB Gain

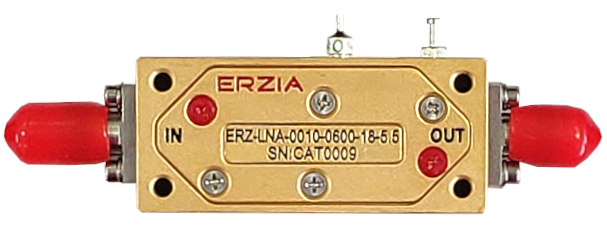

ERZ-LNA-0010-0600-18-5.5 Wideband LNA

Login to see price Get a quote

Description

The ERZ-LNA-0010-0600-18-5.5 is a Low Noise Amplifier providing a gain up to 20 dB with a noise figure of 5.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0010-0600-18-5.5_0

Key Features

  • Frequency Range (GHz): 0.1-6
  • Output Power (dBm): 27.5
  • Small Signal Gain (dB): 20
  • Noise Figure (dB): 5.5
  • Bias: 15
  • Package Dimensions: 40x18.5x10 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.1
Frequency Stop (GHz): 6
Output Power (dBm): 27.5
Gain (dB): 20
Gain flatness (dB): ±1
Noise Figure (dB): 5.5
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 15 ±3
Current (mA): 600
Power consumption (W): 9
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

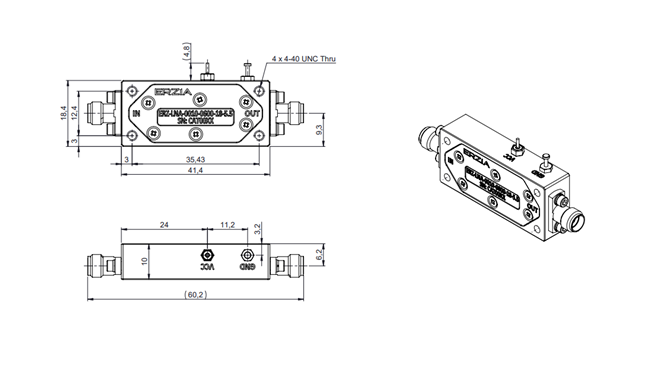

Outline Drawing

Ordering Information
