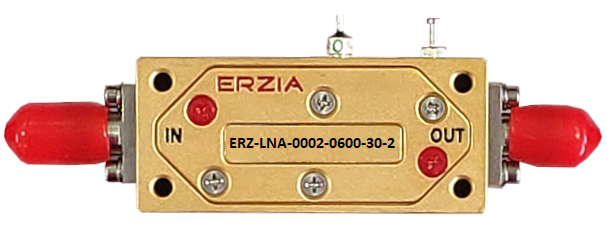

ERZ-LNA-0002-0600-30-2 Wideband LNA

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-0002-0600-30-2 is a Low Noise Amplifier providing a noise figure of 2 dB and gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-0002-0600-30-2_2

Key Features

  • Frequency Range (GHz): 0.02-6.00
  • Output Power (dBm): 20
  • Small Signal Gain (dB): 30
  • Noise Figure (dB): 2
  • Bias: 12 ± 3 V
  • Package Dimensions: 41.4 x 18.4 x 10 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.02
Frequency Stop (GHz): 6.00
Output Power (dBm): 20
Gain (dB): 30.00
Gain flatness (dB): 2
Noise Figure (dB): 2
VSWR IN: 1.2:1
VSWR OUT: 1.5:1
Power supply (V): 12 ±3
Current (mA): 62.5
Power consumption (W): 0.75
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing

Ordering Information
