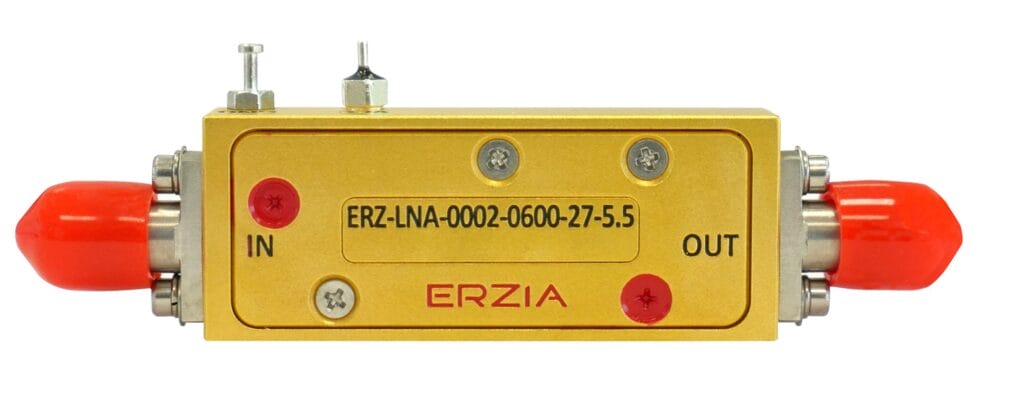

ERZ-LNA-0002-0600-27-5.5
Wideband Low Noise Amplifier
Description
The ERZ-LNA-0002-0600-27-5.5 is a Low Noise Amplifier providing a gain of 28 dB with a noise figure of 5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 0.02-6.00
- Output Power (dBm): 26
- Small Signal Gain (dB): 28
- Noise Figure (dB): 5
- Bias: 12 ±3 VDC
- Package Dimensions: 41.43x19.5x10 mm (LxWxH)
- Connectors: SMA Female
Specifications
| Frequency Start (GHz): | 0.02 |
| Frequency Stop (GHz): | 6.00 |
| Output Power (dBm): | 26 |
| Gain (dB): | 28.00 |
| Gain flatness (dB): | ±0.5 |
| Noise Figure (dB): | 5 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.5:1 |
| Power supply (V): | 12 ±3 |
| Current (mA): | 416 |
| Power consumption (W): | 5 |
| Temperature (operation) (°C): | -55 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military
Outline Drawing
Ordering Information
