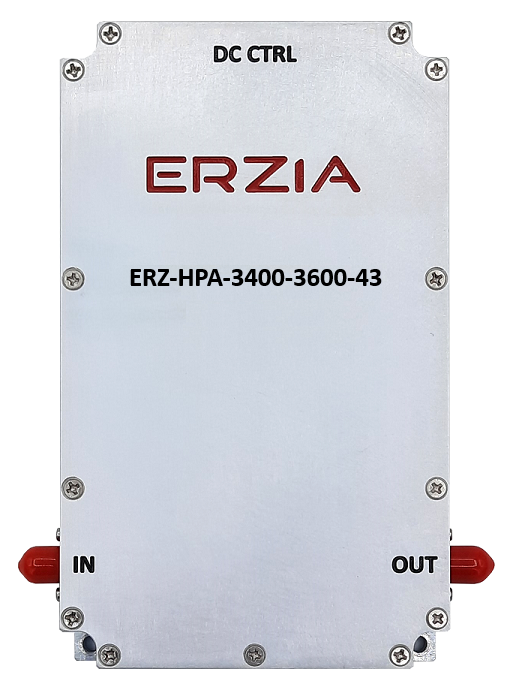

ERZ-HPA-3400-3600-43
Ka Band Power Amplifier |
34–36
GHz | 20 W Psat
Description
The ERZ-HPA-3400-3600-43 is a Pulsed Ka Band High Power Amplifier providing an output power of 43 dBm and a gain of 45 dB. Ideal for Radar applications.
Download
Key Features
- Frequency Range (GHz): 34-36
- Output Power (dBm): 43
- Small Signal Gain (dB): 45
- Noise Figure (dB): 8
- Bias: 28±3
- Package Dimensions: 75x125x22
- Connectors: 2.92mm Female
Specifications
| Frequency Start (GHz): | 34 |
| Frequency Stop (GHz): | 36 |
| Output Power (dBm): | 43 |
| Gain (dB): | 45 |
| Gain flatness (dB): | ±1.5 |
| Noise Figure (dB): | 8 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.5:1 |
| Power supply (V): | 28±3 |
| Current (mA): | 5893 |
| Power consumption (W): | 165 |
| Temperature (operation) (°C): | -35 to 62 |
| Temperature (storage) (°C): | -45 to 80 |
Applications
Radar

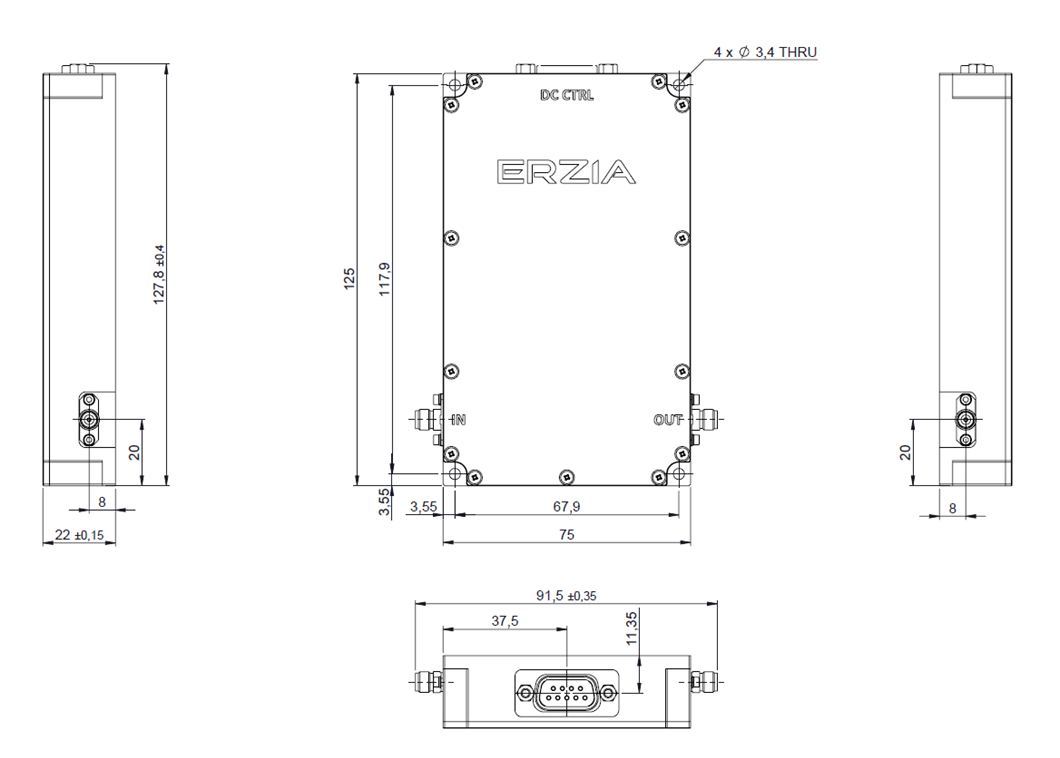

Outline Drawing
Ordering Information
