ERZ-HPA-3300-4500-23

Q Band High Power Amplifier

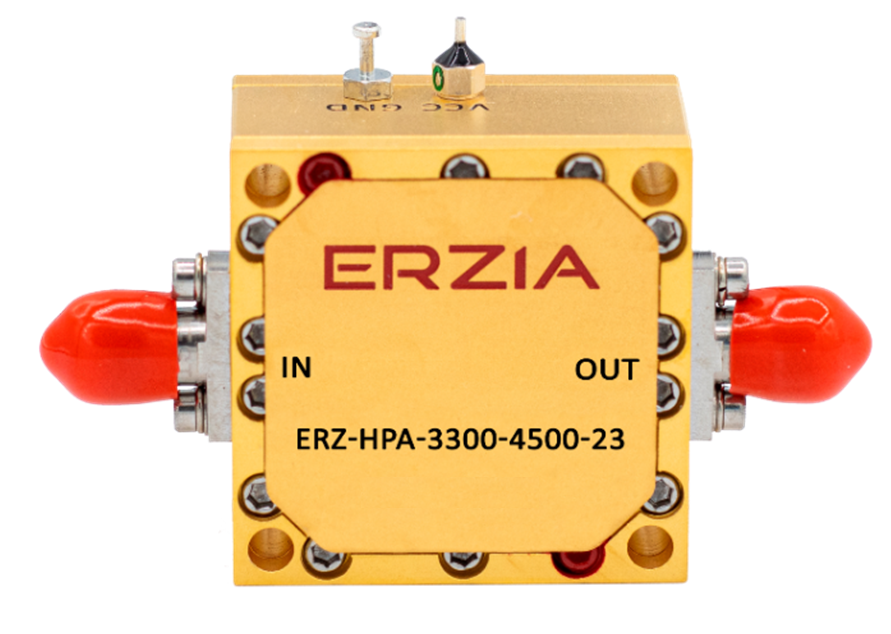

ERZ-HPA-3300-4500-23 Q Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-3300-4500-23 is a Q Band Amplifier providing up to 23 dBm and a gain of 15 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-3300-4500-23_0

Key Features

  • Frequency Range (GHz): 33.00-45.00
  • Output Power (dBm): 23
  • Small Signal Gain (dB): 15
  • Bias: Power supply: +12 ±2 V
  • Package Dimensions: 30x30x17,5 mm
  • Connectors: 2.4 mm Female

Specifications

Frequency Start (GHz): 33.00
Frequency Stop (GHz): 45.00
Output Power (dBm): 23
Gain (dB): 15.00
Gain flatness (dB): ±2.5
VSWR IN: 3.5:1
VSWR OUT: 2.0:1
Power supply (V): 12 ±2
Current (mA): 210
Power consumption (W): 2.5
Temperature (operation) (°C): -35 to 75
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing

Ordering Information
