ERZ-HPA-3000-4000-32-E

Ka Band High Power Amplifier

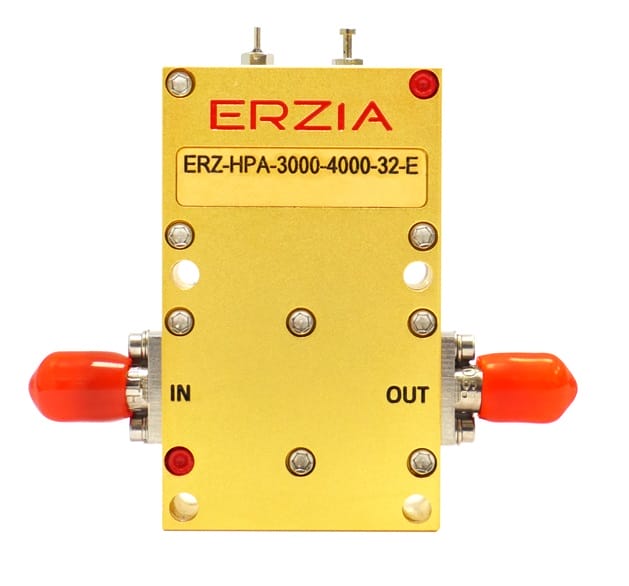

ERZ-HPA-3000-4000-32-E Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-3000-4000-32-E is a Ka Band Power Amplifier providing an output power of 33 dBm and a gain greater than 36 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-3000-4000-32-E_2

Key Features

  • Frequency Range (GHz): 30.00-40.00
  • Output Power (dBm): 33
  • Small Signal Gain (dB): 39
  • Bias: Power supply: 12V
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: 2.92 Female

Specifications

Frequency Start (GHz): 30.00
Frequency Stop (GHz): 40.00
Output Power (dBm): 33
Gain (dB): 39.00
Gain flatness (dB): ±2,5
VSWR IN: 1.3:1
VSWR OUT: 2.5:1
Power supply (V): 12 ±2
Current (mA): 1500
Power consumption (W): 18
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

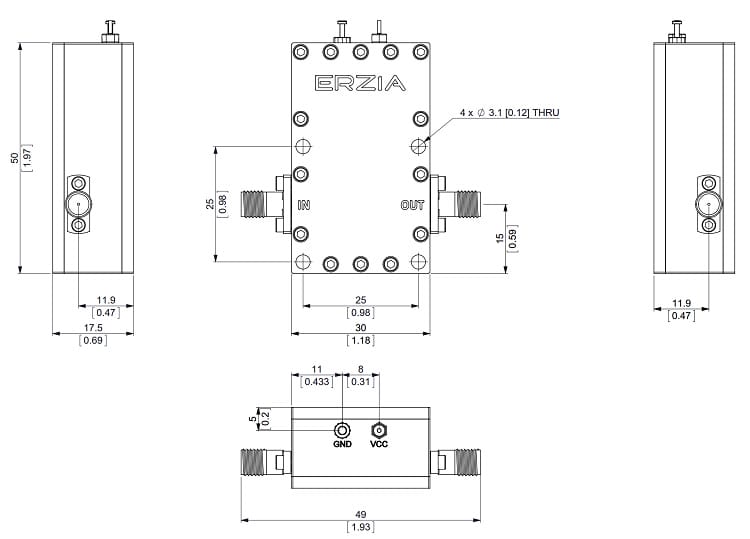

Outline Drawing

Ordering Information
