ERZ-HPA-2700-3100-43-C

Ka Band High Power Amplifier

ERZ-HPA-2700-3100-43-C Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-2700-3100-43-C is a High Power Amplifier based in GaN, providing a gain of 51 dB with a Psat of 42 dBm. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-2700-3100-43-C_6

Key Features

  • Frequency Range (GHz): 27.50-31.00
  • Output Power (dBm): 42
  • Small Signal Gain (dB): 51
  • Bias: 28 ±4 VDC
  • Package Dimensions: 100 x 100 x 21
  • Connectors: 2.92 mm (F)

Specifications

Frequency Start (GHz): 27.50
Frequency Stop (GHz): 31.00
Output Power (dBm): 42
Gain (dB): 51.00
Gain flatness (dB): ±4
VSWR IN: 1.8:1
VSWR OUT: 1.8:1
Power supply (V): 28 ±4
Current (mA): 3200
Power consumption (W): 115
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

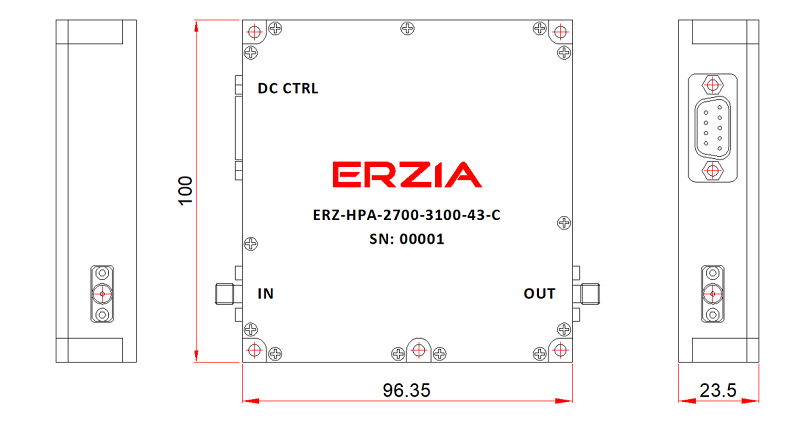

Outline Drawing

Ordering Information
