ERZ-HPA-2600-2800-22

Ka Band High Power Amplifier

ERZ-HPA-2600-2800-22 Ka Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-2600-2800-22 is a Ka Band Amplifier providing up to 22 dBm at saturation and a gain of 19 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-2600-2800-22_1

Key Features

  • Frequency Range (GHz): 26.00-28.00
  • Output Power (dBm): 22
  • Small Signal Gain (dB): 19
  • Bias: Power supply: 10 ±2 V
  • Package Dimensions: 30x30x17,5 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 26.00
Frequency Stop (GHz): 28.00
Output Power (dBm): 22
Gain (dB): 19.00
Gain flatness (dB): ±1
VSWR IN: 1.5:1
VSWR OUT: 1.3:1
Power supply (V): 10 ±2
Current (mA): 224
Power consumption (W): 1.8
Temperature (operation) (°C): -40 to 75
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

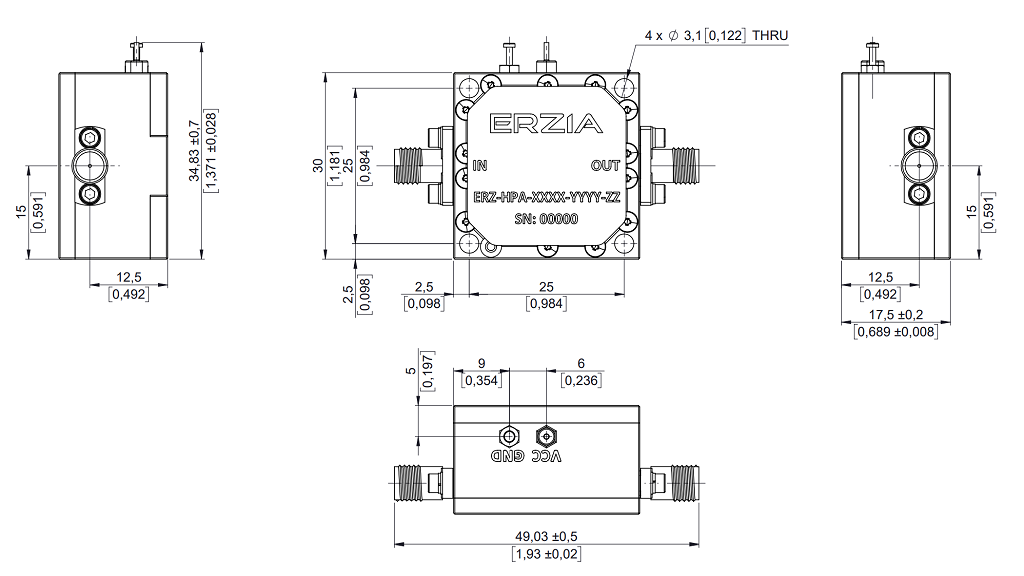

Outline Drawing
