ERZ-HPA-2400-4000-22
Wideband High Power Amplifier
Description

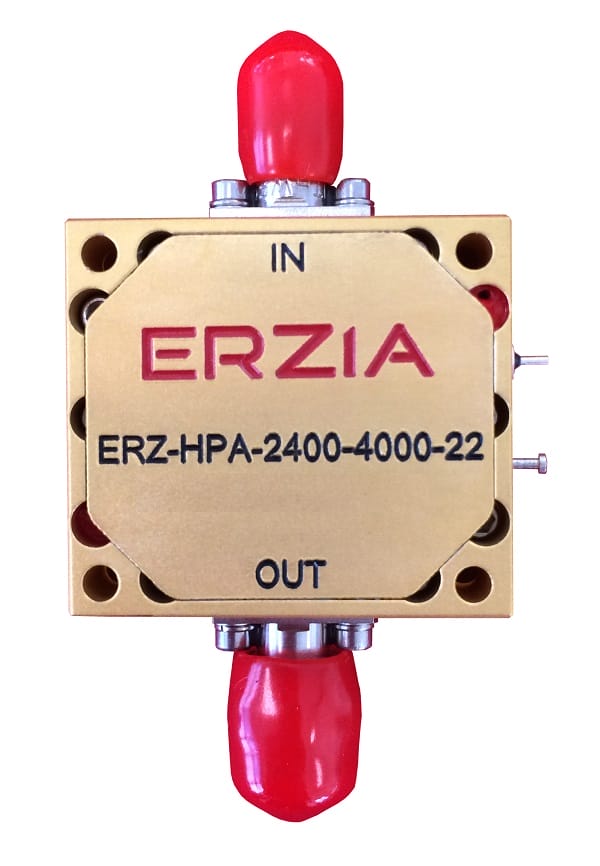

The ERZ-HPA-2400-4000-22 is a High Power Amplifier providing an output power of 23 dBm and a gain of 27 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 24.00-40.00
- Output Power (dBm): 23
- Small Signal Gain (dB): 27
- Noise Figure (dB): 6
- Bias: 12±3
- Package Dimensions: 27.2x30x18 mm (LxWxH)
- Connectors: 2.92 mm Female IN / OUT
Specifications
| Frequency Start (GHz): | 24.00 |
| Frequency Stop (GHz): | 40.00 |
| Output Power (dBm): | 23 |
| Gain (dB): | 27.00 |
| Gain flatness (dB): | ±3 |
| Noise Figure (dB): | 6 |
| VSWR IN: | 1.8:1 |
| VSWR OUT: | 1.5:1 |
| Power supply (V): | 12±3 |
| Current (mA): | 292 |
| Power consumption (W): | 3.5 |
| Temperature (operation) (°C): | -35 to 85 |
| Temperature (storage) (°C): | -55 to 125 |
Applications
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Satcom / Telecom
Space / Aerospace / Military

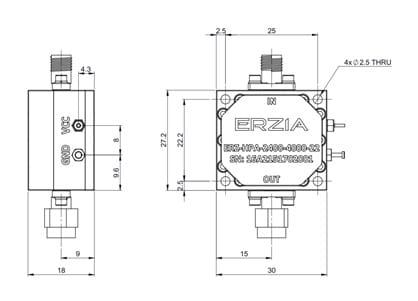

Outline Drawing
