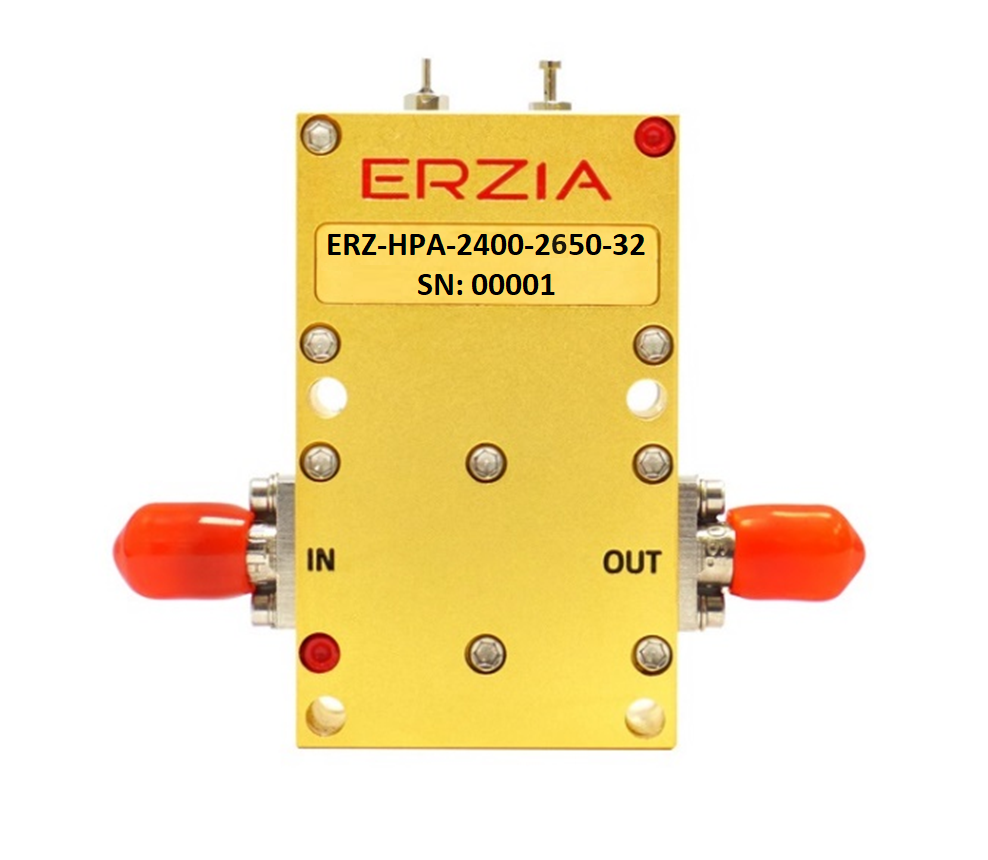

ERZ-HPA-2400-2650-32
K Band High Power Amplifier
Description
The ERZ-HPA-2400-2650-32 is a Ka Band High Power Amplifier providing an output power of 33 dBm and gain of 35 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 24.00-26.50
- Output Power (dBm): 33
- Small Signal Gain (dB): 35
- Output Saturation Power (dBm): 33
- Connectors: 2.92 mm Female
Specifications
| Frequency Start (GHz): | 24.00 |
| Frequency Stop (GHz): | 26.50 |
| Output Power (dBm): | 33 |
| Gain (dB): | 35.00 |
| Gain flatness (dB): | ±0.6 |
| VSWR IN: | 1.5:1 |
| VSWR OUT: | 1.8:1 |
| Power supply (V): | 12 |
| Current (mA): | 1000 |
| Power consumption (W): | 12 |
