ERZ-HPA-0900-1400-34

X Band High Power Amplifier

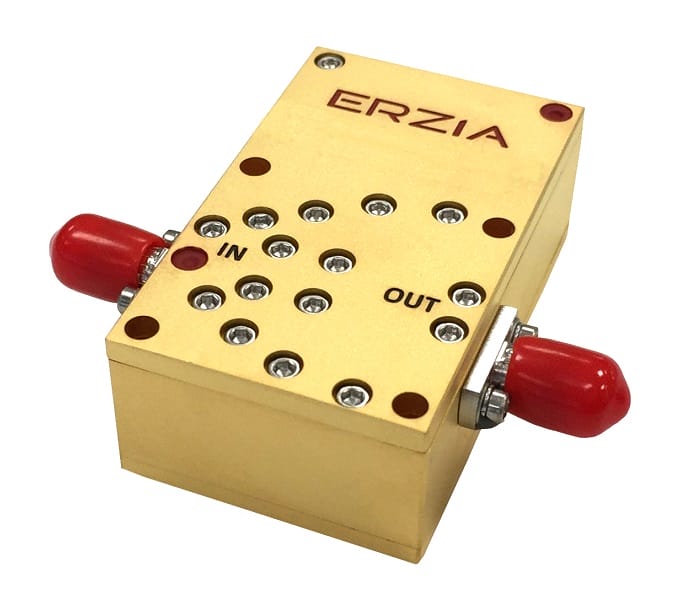

ERZ-HPA-0900-1400-34 X Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-0900-1400-34 is a X Band Amplifier providing up to 34 dBm and a gain of 32 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0900-1400-34_2

Key Features

  • Frequency Range (GHz): 9.00-14.00
  • Output Power (dBm): 34
  • Small Signal Gain (dB): 32
  • Bias: Power supply: +12 V, DC Current: 1 A
  • Package Dimensions: 30x50x17,5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 9.00
Frequency Stop (GHz): 14.00
Output Power (dBm): 34
Gain (dB): 32.00
Gain flatness (dB): ±2
VSWR IN: 1.8:1
VSWR OUT: 1.8:1
Power supply (V): 12 ±3
Current (mA): 1333
Power consumption (W): 12
Temperature (operation) (°C): -45 to 70
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

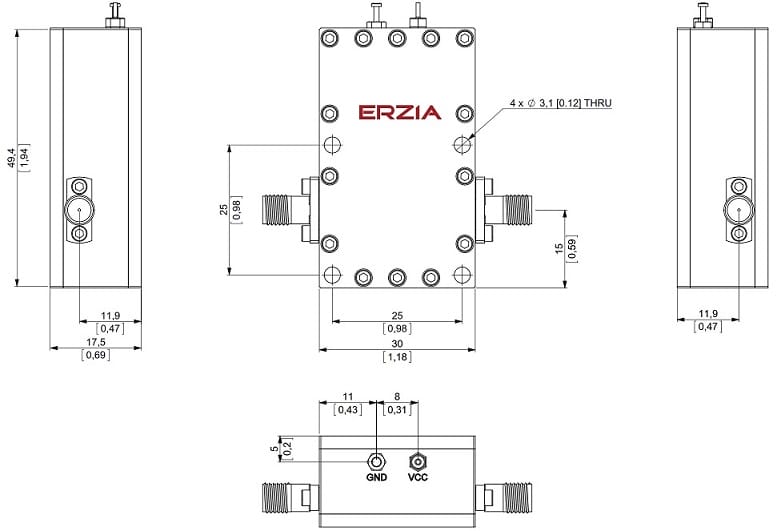

Outline Drawing

Ordering Information
