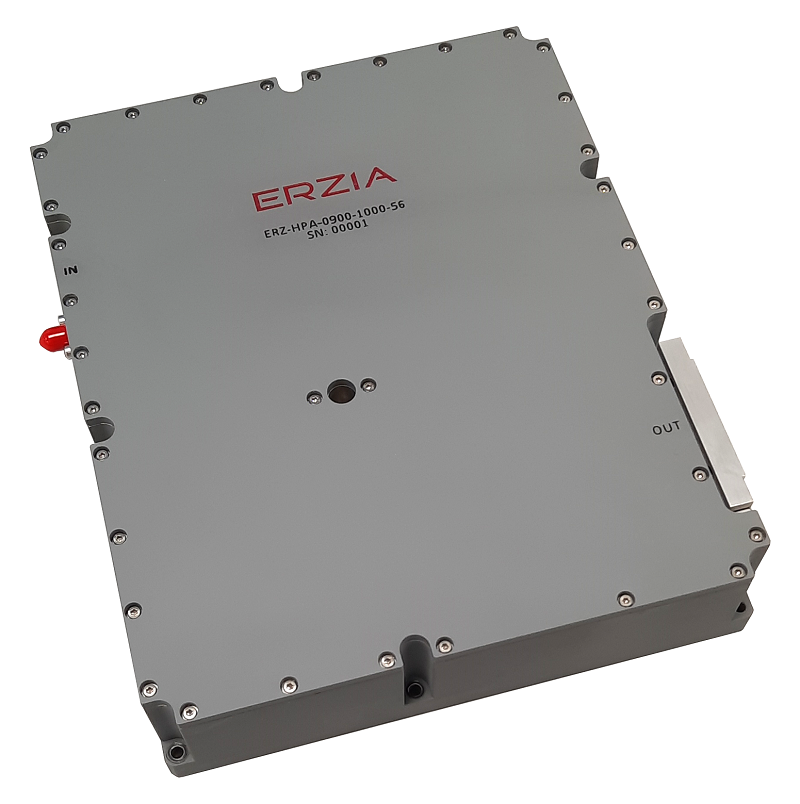

ERZ-HPA-0900-1000-56
X Band High Power Amplifier
Description
The ERZ-HPA-0900-1000-56 is a pulsed High Power Amplifier based on GaN technology focused for Radar applications in X band. It provides more than 400W in a compact size.
Download
Key Features
- Frequency Range (GHz): 9.00-10.00
- Output Power (dBm): 54.5
- Small Signal Gain (dB): 70
- Bias: 28±4 VDC
- Package Dimensions: 218x187.5x42.5 mm
- Connectors: SMA Female (IN) / WR90 (OUT)
Specifications
| Frequency Start (GHz): | 9.00 |
| Frequency Stop (GHz): | 10.00 |
| Output Power (dBm): | 54.5 |
| Gain (dB): | 70.00 |
| Gain flatness (dB): | ±1 |
| VSWR IN: | 1.6:1 |
| VSWR OUT: | 1.6:1 |
| Power supply (V): | 28±4 |
| Current (mA): | 8000 |
| Power consumption (W): | 245 |
| Temperature (operation) (°C): | -40 to +60 |
| Temperature (storage) (°C): | -55 to +125 |
Applications
Radar

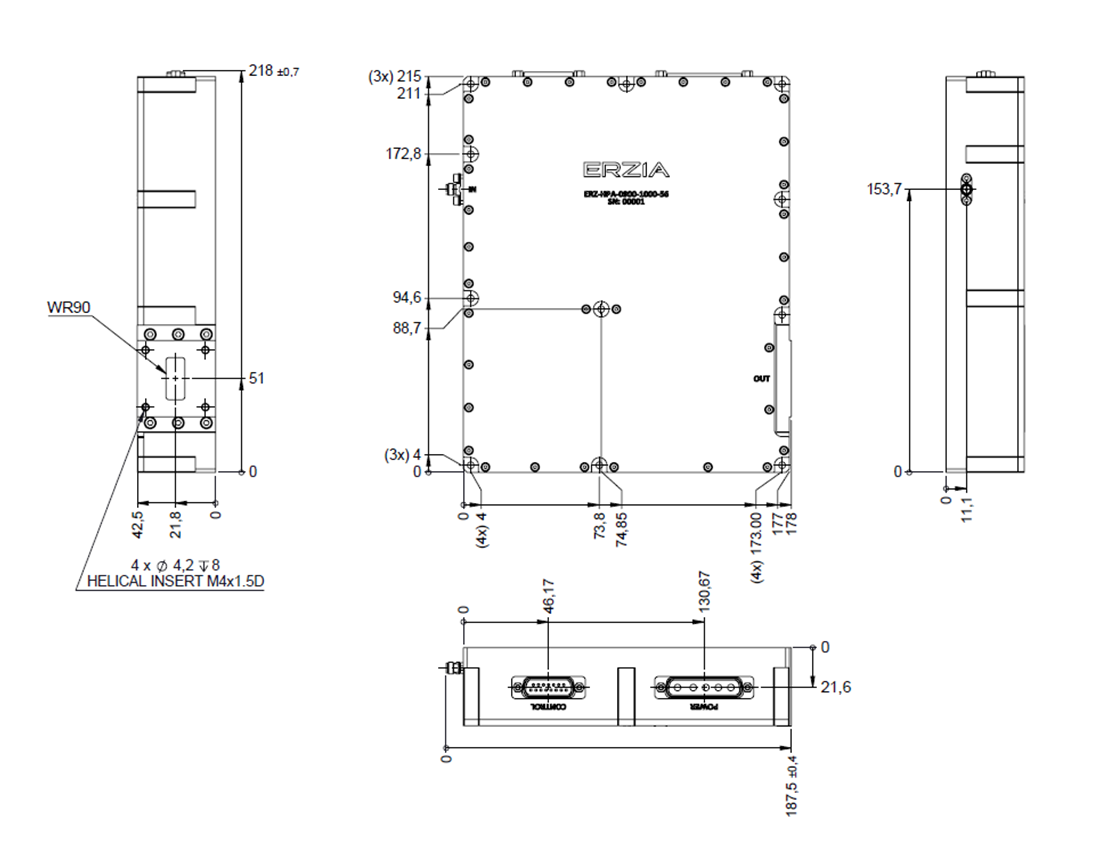

Outline Drawing
Ordering Information
