ERZ-HPA-0850-0980-55
X Band High Power Amplifier
Description
The ERZ-HPA-0850-0980-55 is a pulsed High Power Amplifier based on GaN technology focused for Radar applications in X band. It provides 300W in a compact size and modularity.
Download
Key Features
- Frequency Range (GHz): 8.50-9.80
- Output Power (dBm): 55
- Small Signal Gain (dB): 60
- Bias: 28 ±6 VDC
- Package Dimensions: 178x215x42.5 mm (LxWxH)
- Connectors: IN: SMA (F) / OUT: WR-90
Specifications
| Frequency Start (GHz): | 8.50 |
| Frequency Stop (GHz): | 9.80 |
| Output Power (dBm): | 55 |
| Gain (dB): | 60.00 |
| VSWR IN: | 2.0:1 |
| VSWR OUT: | 2.0:1 |
| Power supply (V): | 28 ± 6 |
| Current (mA): | 7143 |
| Power consumption (W): | 200 (avg) @10% Duty Cycle |
| Temperature (operation) (°C): | -40 to +70 |
| Temperature (storage) (°C): | -55 to +125 |
Applications
Radar X-Band

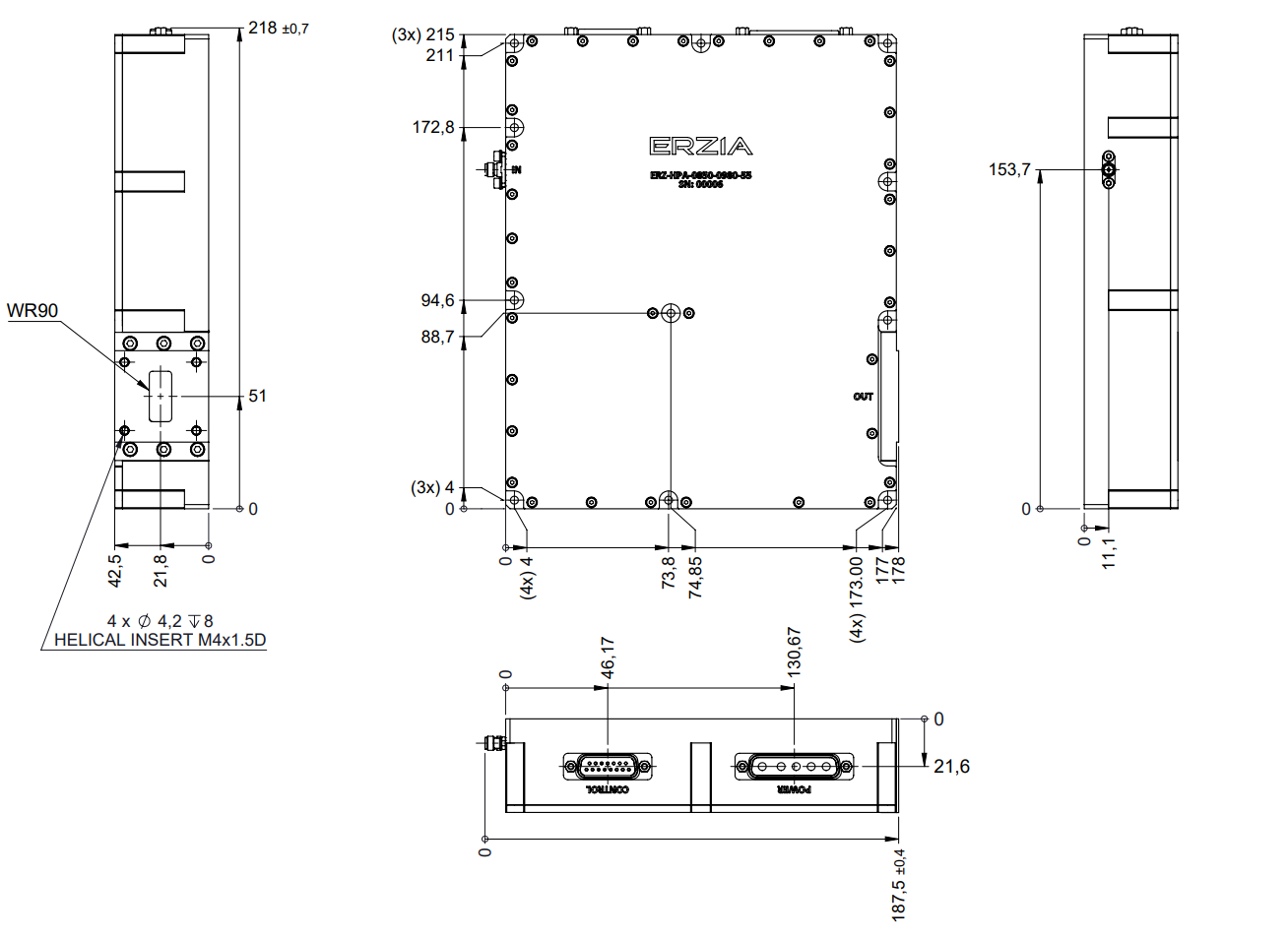

Outline Drawing
Ordering Information
