X Band High Power Amplifier

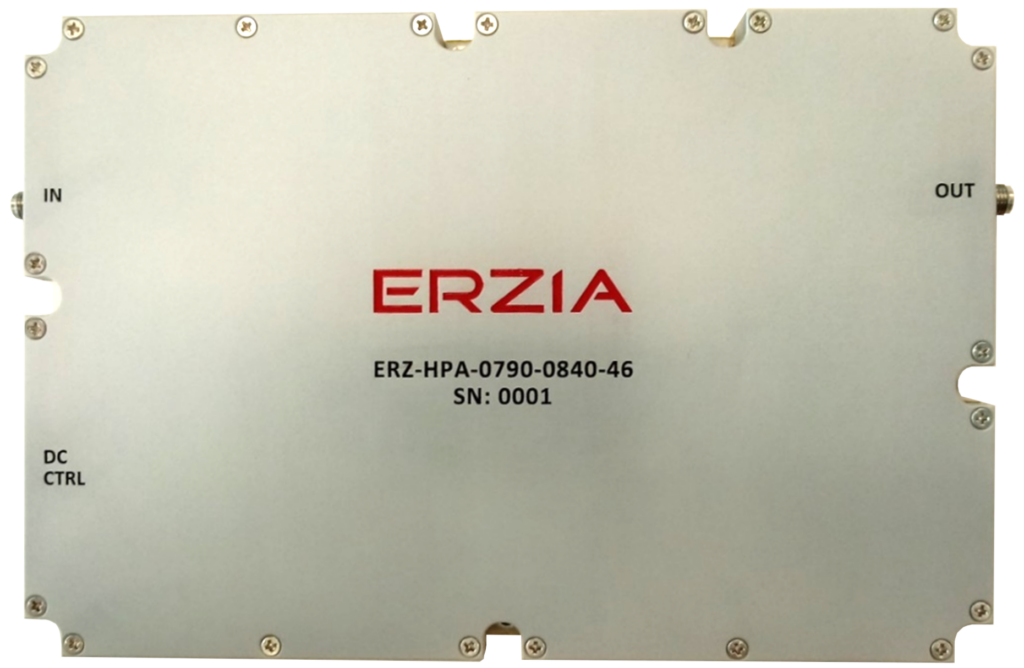

ERZ-HPA-0790-0840-46 X Band HPA

Login to see price Get a quote

Description

The ERZ-HPA-0790-0840-46 is a High Power Amplifier providing an output power of 46 dBm and a gain of 42 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0790-0840-46_1

Key Features

  • Frequency Range (GHz): 7.90-8.40
  • Output Power (dBm): 46
  • Small Signal Gain (dB): 42
  • Bias: 24 VDC
  • Package Dimensions: 180x120x22 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 7.90
Frequency Stop (GHz): 8.40
Output Power (dBm): 46
Gain (dB): 40.00
Gain flatness (dB): ±1
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Power supply (V): 24
Current (mA): 8333
Power consumption (W): 200
Temperature (operation) (°C): -40 to 85
Temperature (storage) (°C): -55 to 125
