ERZ-HPA-0200-2000-43
Wideband Power Amplifier | 2–20 GHz | 16 W Psat

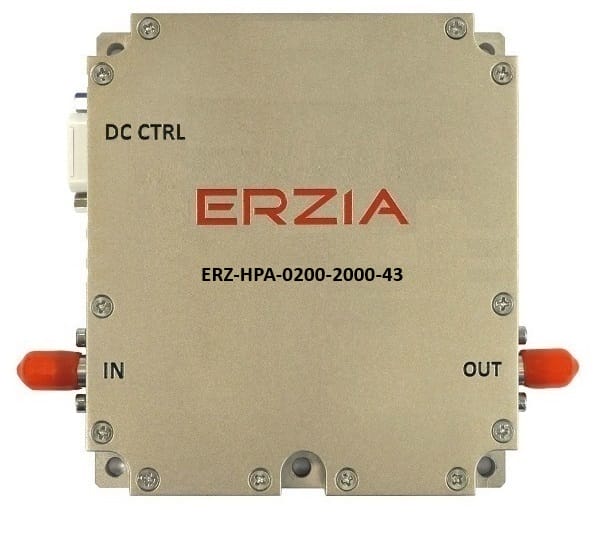

ERZ-HPA-0200-2000-43 Wideband HPA

Login to see price Get a quote

Description

The ERZ-HPA-0200-2000-43 is a GaN High Power Amplifier providing an output power of 42 dBm and a gain of 51 dB . The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0200-2000-43_0

Key Features

  • Frequency Range (GHz): 2-20
  • Output Power (dBm): 42
  • Small Signal Gain (dB): 51
  • Bias: 28±4
  • Output Saturation Power (dBm): 42
  • Package Dimensions: 96x100x23 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 2
Frequency Stop (GHz): 20
Output Power (dBm): 42
Gain (dB): 51
Gain flatness (dB): ±1.5
VSWR IN: 1.8:1
VSWR OUT: 1.8:1
Power supply (V): 28±4
Current (mA): 4643
Power consumption (W): 130
Temperature (operation) (°C): -40 to +70
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

Outline Drawing

Ordering Information
