ERZ-HPA-0200-0600-46
Wideband Power Amplifier | 2–6 GHz | 40 W Psat

ERZ-HPA-0200-0600-46

Login to see price Get a quote

Description

The ERZ-HPA-0200-0600-46 is a High Power Amplifier providing an output power of 46 dBm and a gain of 59 dB over 2 to 6 GHz. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0200-0600-46

Key Features

  • Frequency Range (GHz): 2-6
  • Output Power (dBm): 46
  • Small Signal Gain (dB): 59
  • Bias: 24 VDC
  • Package Dimensions: 96x100x23 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 2
Frequency Stop (GHz): 6
Output Power (dBm): 46
Gain (dB): 59
Gain flatness (dB): ±4
VSWR IN: 1.9:1
VSWR OUT: 3.6:1
Power supply (V): 28
Current (mA): 20000
Power consumption (W): 160
Max. Input DC (no damage) (V): 36
Max. RF input power (dBm): 10
Temperature (operation) (°C): -40 to 70
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

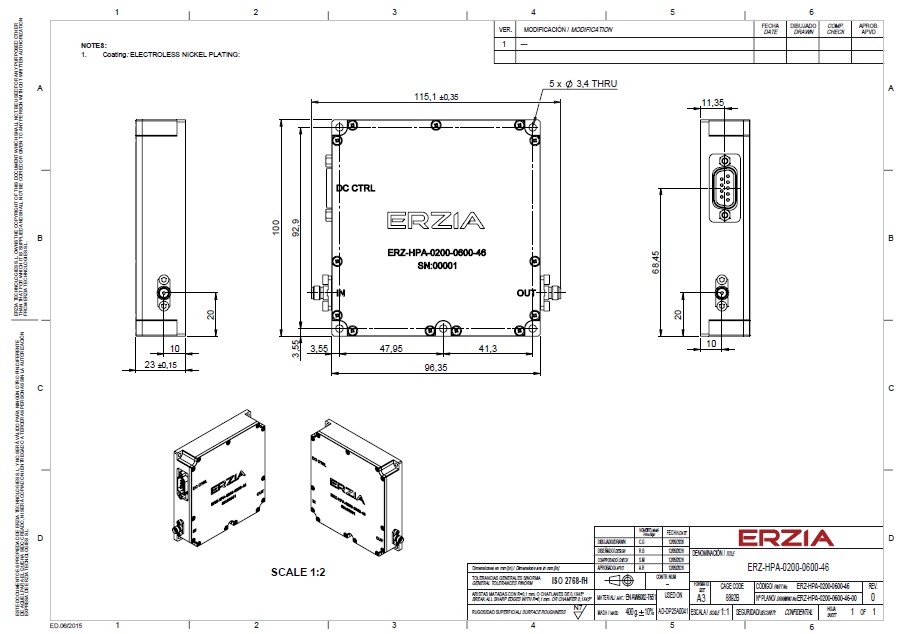

Outline Drawing
