ERZ-HPA-0100-1800-37

Wideband High Power Amplifier

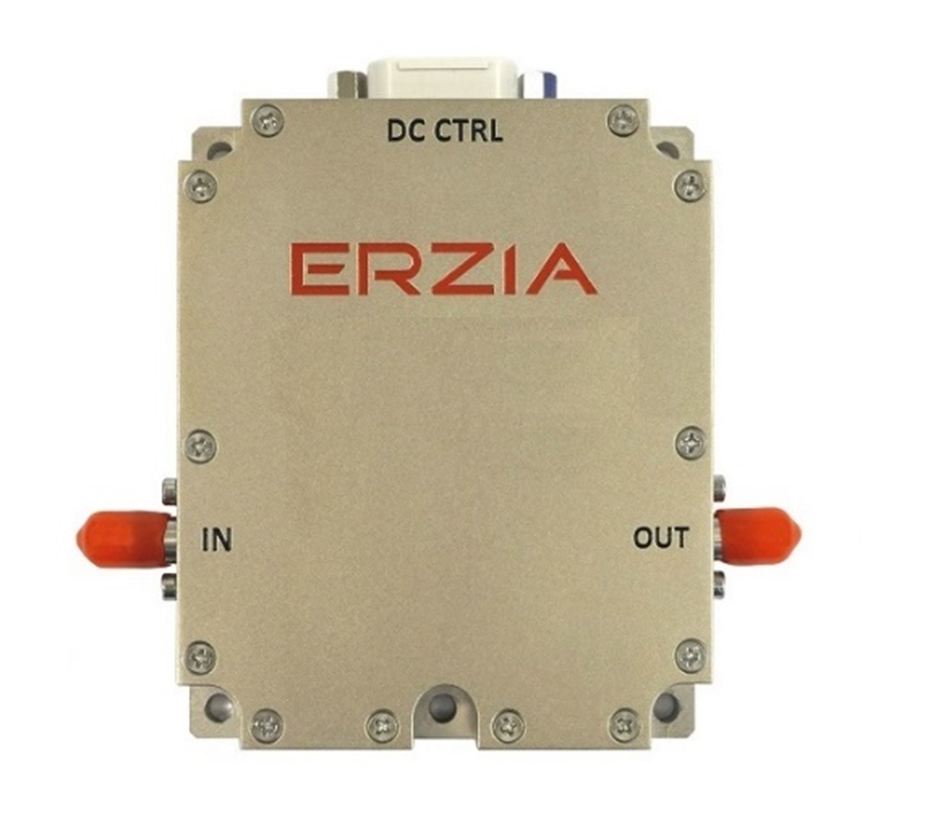

ERZ-HPA-0100-1800-37 Wideband HPA

Login to see price Get a quote

Description

The ERZ-HPA-0100-1800-37 is a wideband high power amplifier providing an output power of 36 dBm and a gain of 36 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0100-1800-37_1

Key Features

  • Frequency Range (GHz): 1.00-18.00
  • Output Power (dBm): 36
  • Small Signal Gain (dB): 36
  • Noise Figure (dB): 8
  • Bias: 24±6
  • Package Dimensions: 100 x 80 x 21
  • Connectors: SMA female

Specifications

Frequency Start (GHz): 1.00
Frequency Stop (GHz): 18.00
Output Power (dBm): 36
Gain (dB): 36.00
Gain flatness (dB): ± 4
Noise Figure (dB): 8
VSWR IN: 1.5:1
VSWR OUT: 2.0:1
Power supply (V): 24 ± 6
Current (mA): 1610
Power consumption (W): 40
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

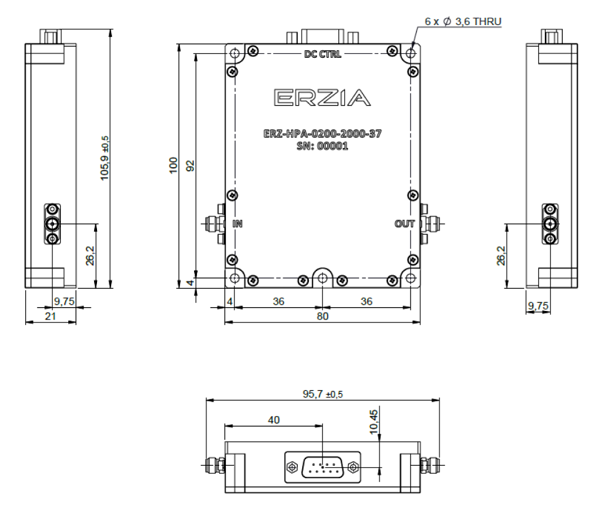

Outline Drawing

Ordering Information
