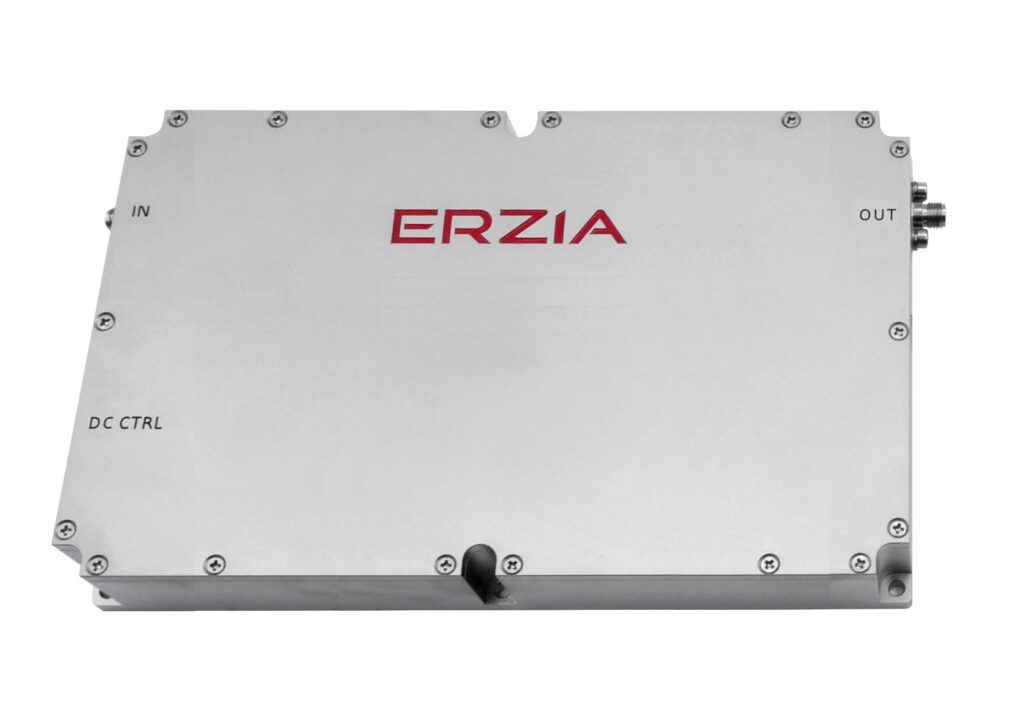

ERZ-HPA-0050-0600-50
Wideband High Power Amplifier
Description
The ERZ-HPA-0050-0600-50 is a High Power Amplifier providing an output power of 50 dBm and a gain of 50 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download
Key Features
- Frequency Range (GHz): 0.50-6.00
- Output Power (dBm): 50
- Small Signal Gain (dB): 50
- Noise Figure (dB): 7
- Bias: 24 VDC
- Package Dimensions: 240x170x25mm
- Connectors: SMA Female IN / N Female OUT
Specifications
| Frequency Start (GHz): | 0.50 |
| Frequency Stop (GHz): | 6.00 |
| Output Power (dBm): | 50 |
| Gain (dB): | 50.00 |
| Gain flatness (dB): | ±2.5 |
| Noise Figure (dB): | 7 |
| VSWR IN: | 2.0:1 |
| VSWR OUT: | 3.0: |
| Power supply (V): | 28±4 |
| Current (mA): | 25000 |
| Max. Input DC (no damage) (V): | 36 |
| Max. RF input power (dBm): | 15 |
| Temperature (operation) (°C): | -40 to +70 |
| Temperature (storage) (°C): | -55 to +125 |
Applications
Jamming

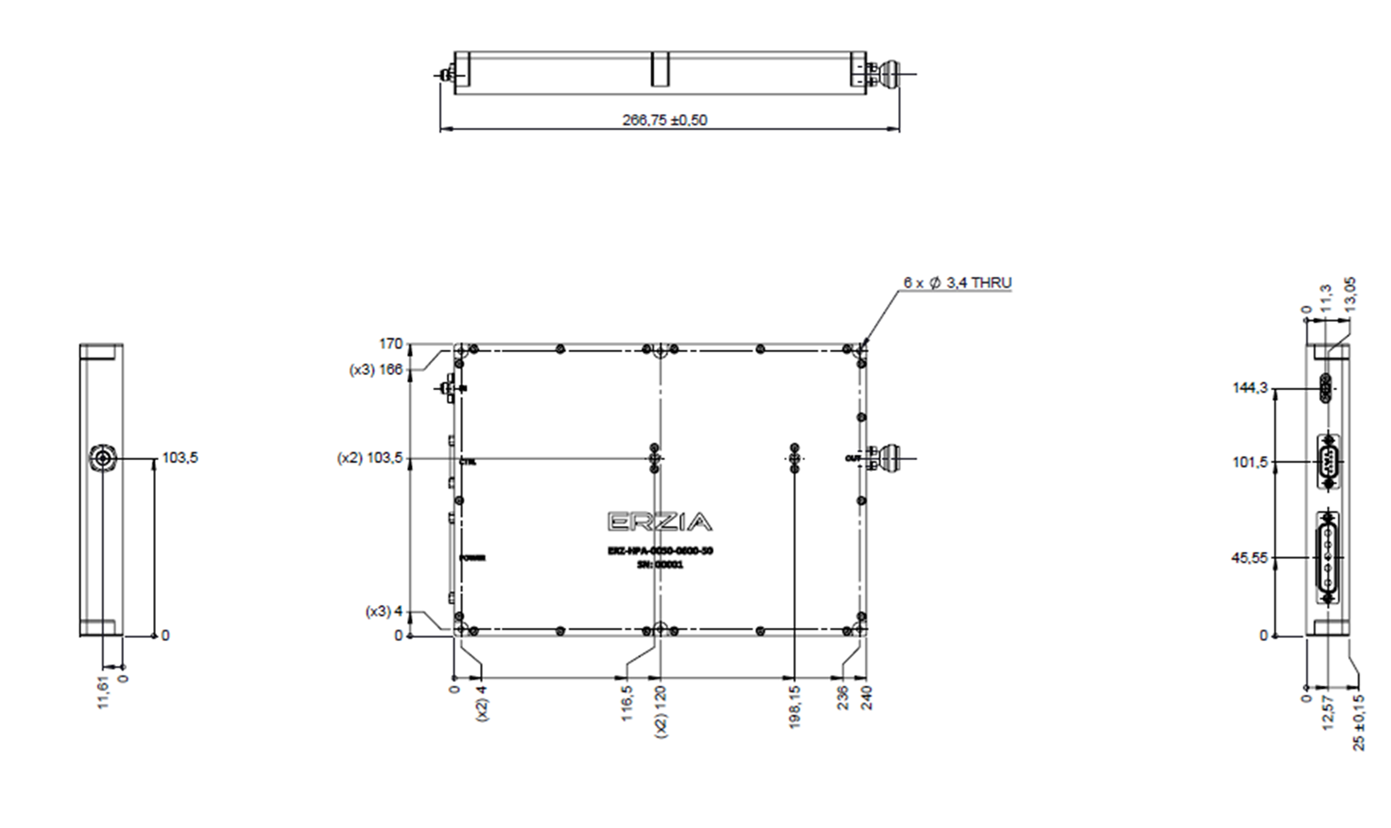

Outline Drawing
Ordering Information
