ERZ-HPA-0050-0600-48

Wideband High Power Amplifier

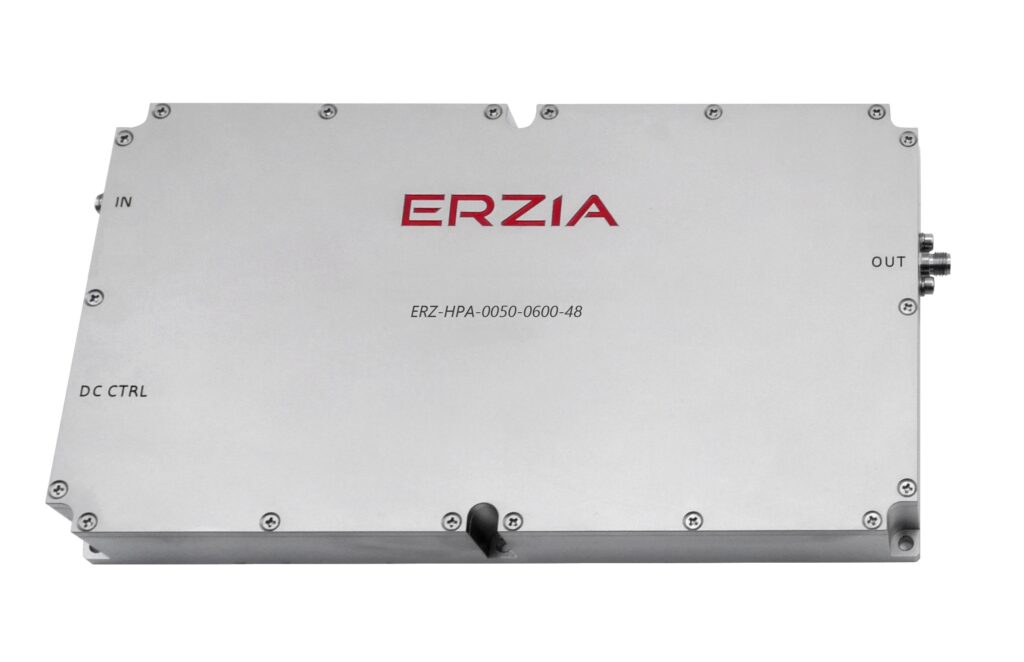

ERZ-HPA-0050-0600-48_photo_EDIT

Login to see price Get a quote

Description

The ERZ-HPA-0050-0600-48 is a High Power Amplifier providing an output power of 48 dBm and a gain of 50 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0050-0600-48

Key Features

  • Frequency Range (GHz): 0.50-6.00
  • Output Power (dBm): 48
  • Small Signal Gain (dB): 50
  • Bias: 24 VDC
  • Package Dimensions: 180x120x21.9 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 0.50
Frequency Stop (GHz): 6.00
Output Power (dBm): 48
Gain (dB): 50.00
Gain flatness (dB): ±2
VSWR IN: 2.0:1
VSWR OUT: 3.0:1
Power supply (V): 24
Current (mA): 20000
Power consumption (W): 485
Max. Input DC (no damage) (V): 36
Max. RF input power (dBm): 10
Temperature (operation) (°C): -40 to 70
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

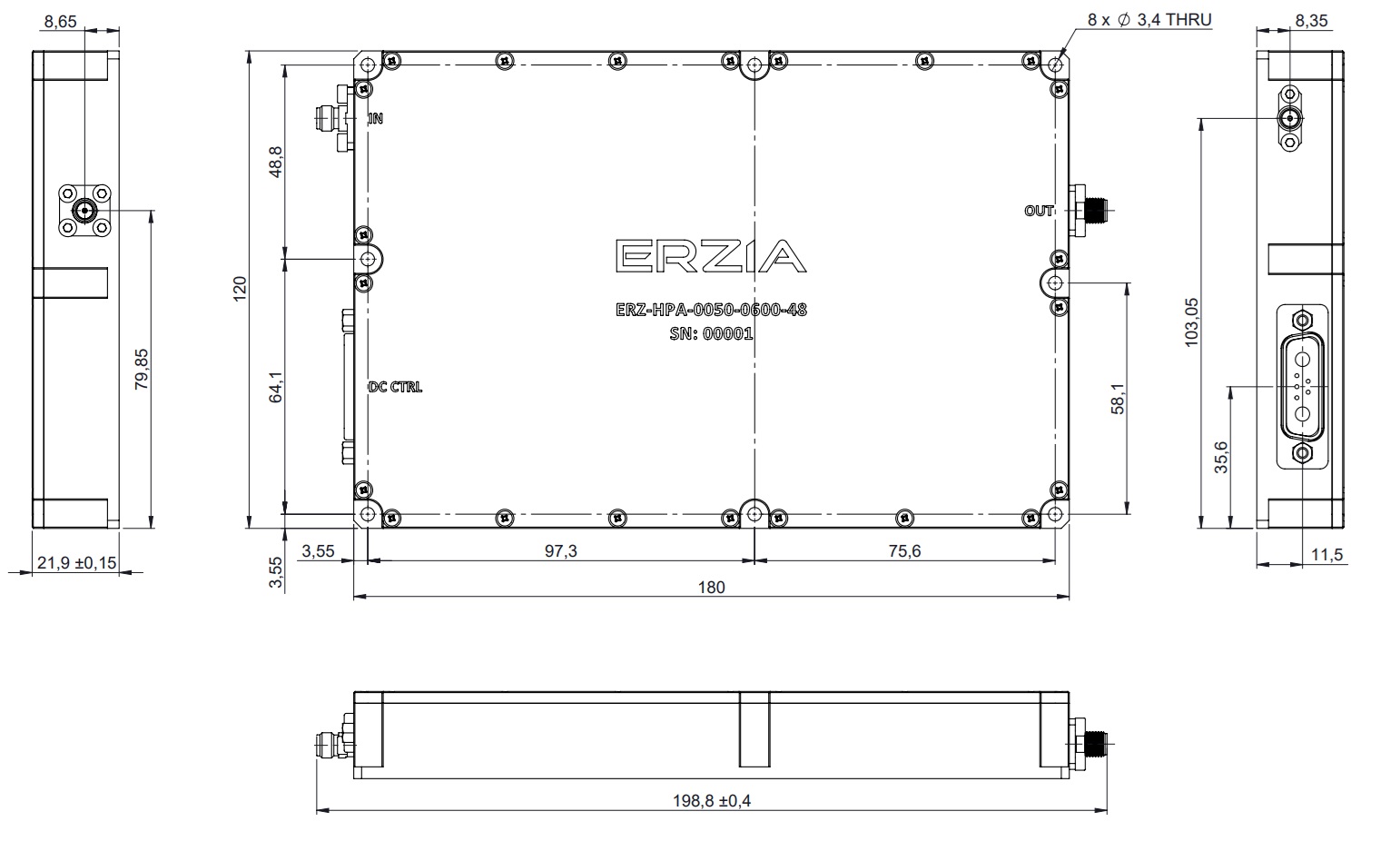

Outline Drawing
