ERZ-HPA-0002-0600-42

Wideband High Power Amplifier

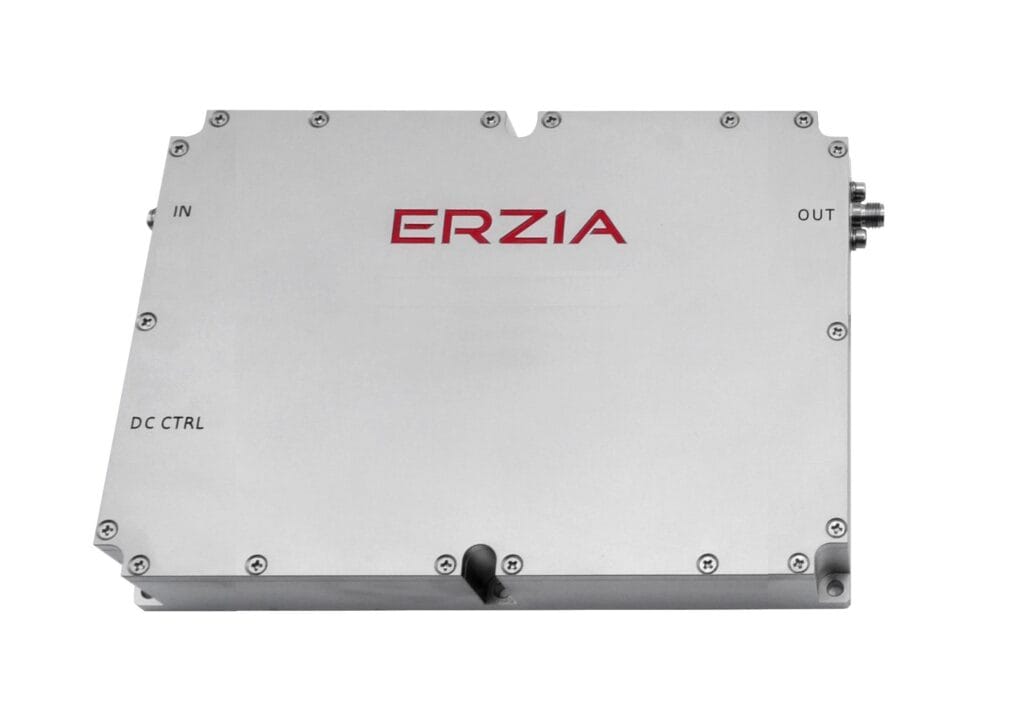

ERZ-HPA-0002-0600-42 Wideband HPA

Login to see price Get a quote

Description

The ERZ-HPA-0002-0600-42 is a High Power Amplifier providing an output power of 42 dBm and a gain of 38 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-HPA-0002-0600-42_0-1

Key Features

  • Frequency Range (GHz): 0.02-6.00
  • Output Power (dBm): 42
  • Small Signal Gain (dB): 38
  • Bias: 24±4
  • Package Dimensions: 160 x 115 x 27 mm
  • Connectors: SMA-F

Specifications

Frequency Start (GHz): 0.02
Frequency Stop (GHz): 6.00
Output Power (dBm): 42
Gain (dB): 38.00
Gain flatness (dB): 4
VSWR IN: 2.0:1
VSWR OUT: 3.0:1
Power supply (V): 24±4
Current (mA): 3750
Power consumption (W): 90

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

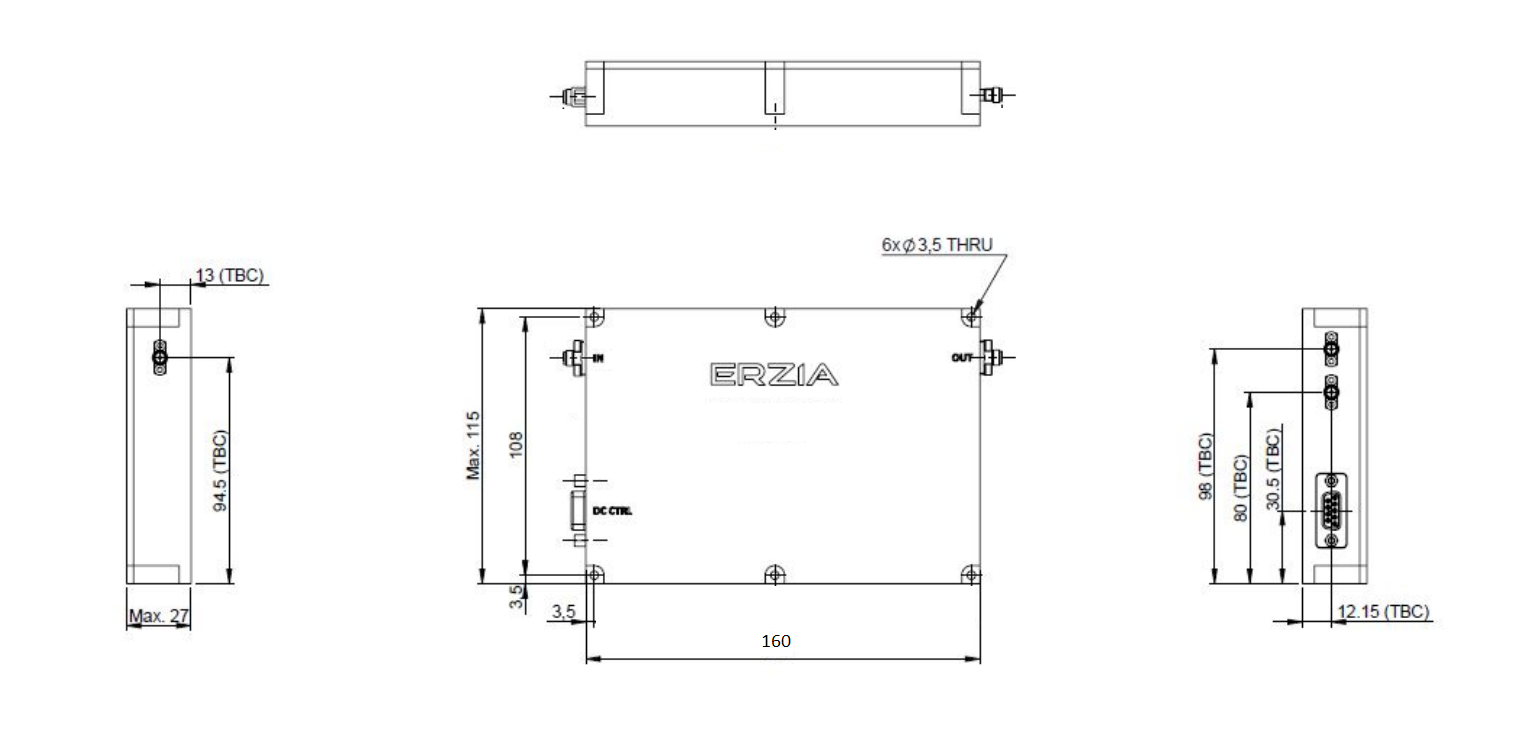

Outline Drawing
