ERZ-BPF-0920-1000-2.9

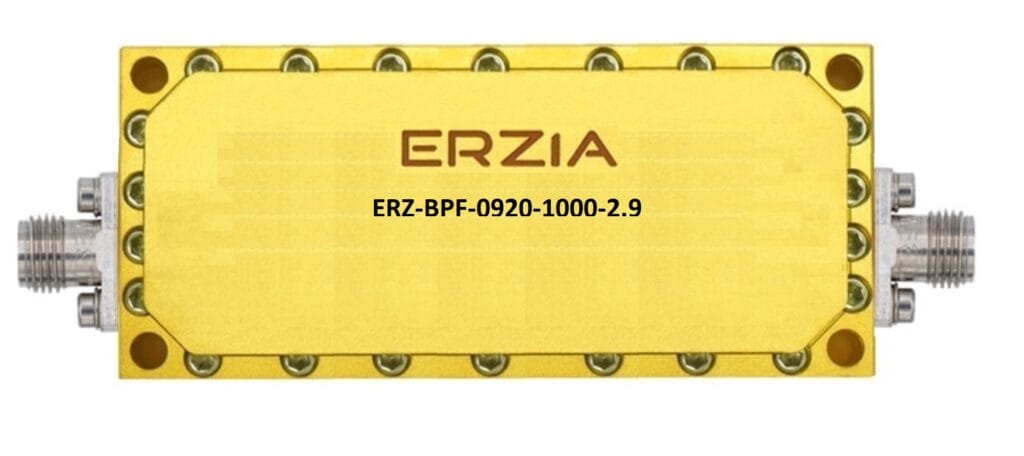

ERZ-BPF-0920-1000-2.9 Suspended Substrate

Login to see price Get a quote

Band Pass Fiter

Description

The ERZ-BPF-0920-1000-2.9 is a suspended substrate band pass filter integrated in a compact, rugged and connectorized module allowing easy integration in a wide range of final applications.

Download

PDF IconERZ-BPF-0920-1000-2.9_0

Key Features

  • Frequency Range (GHz): 9.20-10.00
  • Type: BPF
  • Technology: SS
  • Package Dimensions: 90x40x10
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 9.20
Frequency Stop (GHz): 10.00
Insertion Loss (dB): 2.5
Return Loss (dB): 13
Minimum frequency for 30 dB out of band rejection (GHz): 8.8
Maximum frequency for 30 dB out of band rejection (GHz): 10.5
Minimum frequency for 60 dB out of band rejection (GHz): 8.5
Maximum frequency for 60 dB out of band rejection (GHz): 10.8
Max. RF input power (dBm): 40
Temperature (operation) (°C): -40 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
