ERZ-BPF-0900-1100-3

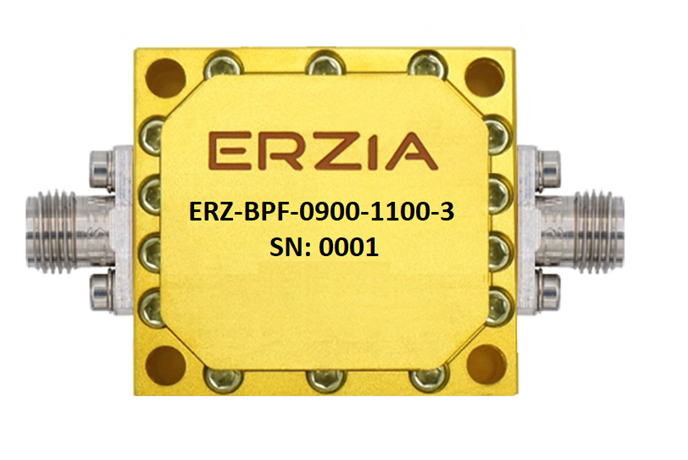

ERZ-BPF-0900-1100-3 Suspended Substrate

Login to see price Get a quote

Band Pass Fiter

Description

The ERZ-BPF-0900-1100-3 is an alumina band pass filter integrated in a compact, rugged and connectorized module allowing easy integration in a wide range of final applications.

Download

PDF IconERZ-BPF-0900-1100-3_0

Key Features

  • Frequency Range (GHz): 9.00-11.00
  • Type: BPF
  • Technology: LC
  • Package Dimensions: 30x25x10 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 9.00
Frequency Stop (GHz): 11.00
Insertion Loss (dB): 2
Return Loss (dB): 15
Minimum frequency for 30 dB out of band rejection (GHz): 8.5
Maximum frequency for 30 dB out of band rejection (GHz): 12
Minimum frequency for 60 dB out of band rejection (GHz): 8
Max. RF input power (dBm): 40
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
