ERZ-BPF-0205-0255-2.2 Suspended Substrate

Login to see price Get a quote

Band Pass Fiter

Description

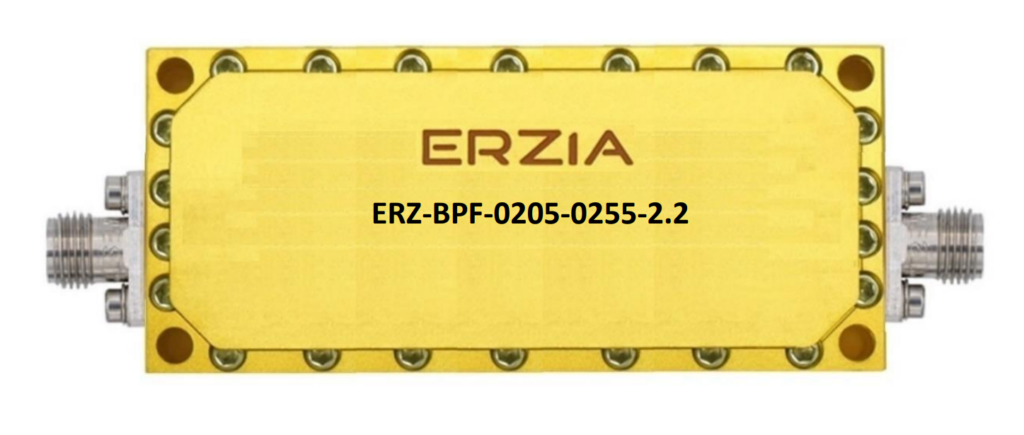

The ERZ-BPF-0205-0255-2.2 is a Suspended Substrate Band Pass filter integrated in a compact, rugged and connectorized module allowing easy integration in a wide range of final applications.

Download

PDF IconERZ-BPF-0205-0255-2.2_0

Key Features

  • Frequency Range (GHz): 2.05-2.55
  • Type: BPF
  • Technology: SS
  • Package Dimensions: 90x40x10 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 2.05
Frequency Stop (GHz): 2.55
Insertion Loss (dB): 1.7
Return Loss (dB): 15
Minimum frequency for 30 dB out of band rejection (GHz): 1.9
Maximum frequency for 30 dB out of band rejection (GHz): 2.7
Minimum frequency for 60 dB out of band rejection (GHz): 1.7
Maximum frequency for 60 dB out of band rejection (GHz): 2.8
Max. RF input power (dBm): 40
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
