ERZ-LNA-0010-0050-20-5

Wideband Low Noise Amplifier

Description:

The ERZ-LNA-0010-0050-20-5 is a low noise amplifier with switching capabilities, providing high isolation without compromising noise figure. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
0.1 to 0.5
Output Power (dBm):
25
Small Signal Gain (dB):
20
Noise Figure (dB):
3.5
Bias:
+12,-12,-5 VDC
Package Dimensions:
60x40x25 mm
Connectors:
SMA Female
Frequency Start (GHz)
0.1
Frequency Stop (GHz)
0.5
Output Power (dBm)
25
Gain (dB)
20
Gain flatness (dB)
±1
Noise Figure (dB)
3.5
VSWR IN
1.5:1
VSWR OUT
1.8:1
Power supply (V)
12
Current (mA)
65
Power consumption (W)
1
Max. Input DC (no damage) (V)
+12.5 VDC, +5.5 VDC, -12.5 VDC
Max. RF input power (dBm)
30
Temperature (operation) (°C)
-45 to 70ºC
Temperature (storage) (°C)
-55 to 125ºC
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

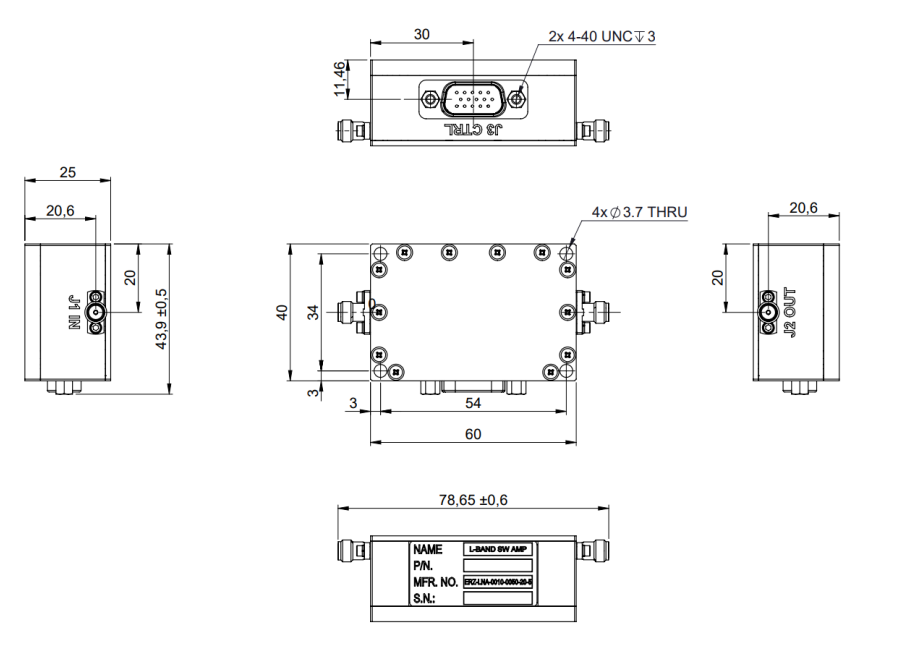

Outline Drawing:
