Wideband Low Noise Amplifier
Description:

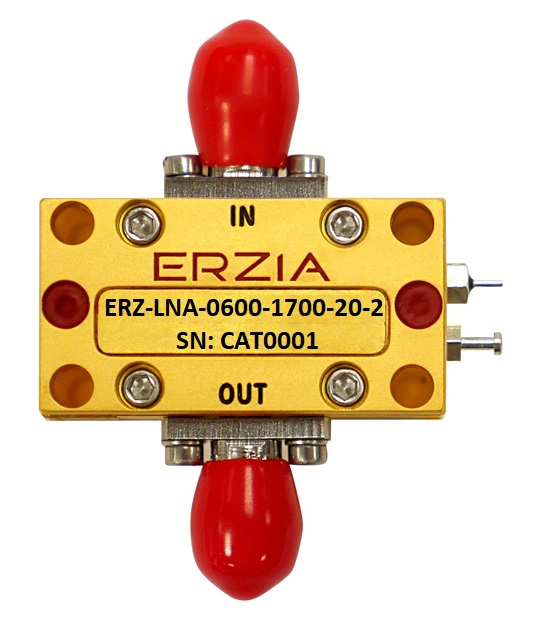

The ERZ-LNA-0600-1700-20-2 is a Low Noise Amplifier that provides a Noise Figure of 2 dB with a Gain of 20 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 6.0
|
|---|---|
| Frequency Stop (GHz) | 17.0
|
| Output Power (dBm) | 17
|
| Gain (dB) | 20
|
| Gain flatness (dB) | ±0.5
|
| Noise Figure (dB) | 2
|
| VSWR IN | 2.5:1
|
| VSWR OUT | 2.0:1
|
| Power supply (V) | 12 ±4
|
| Current (mA) | 42
|
| Power consumption (W) | 0.5
|
| Max. Input DC (no damage) (V) | 16
|
| Max. RF input power (dBm) | 10
|
| Temperature (operation) (°C) | -45 to 85
|
| Temperature (storage) (°C) | -55 to 125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

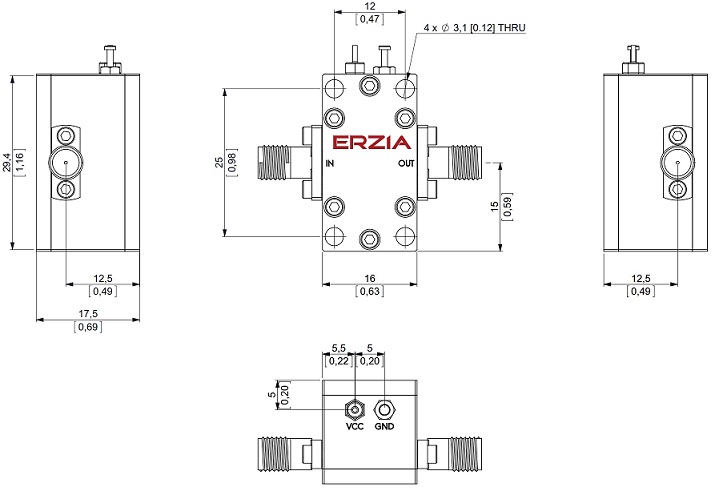

Outline Drawing:
Ordering Information:
