Wideband Power Amplifier
Description:

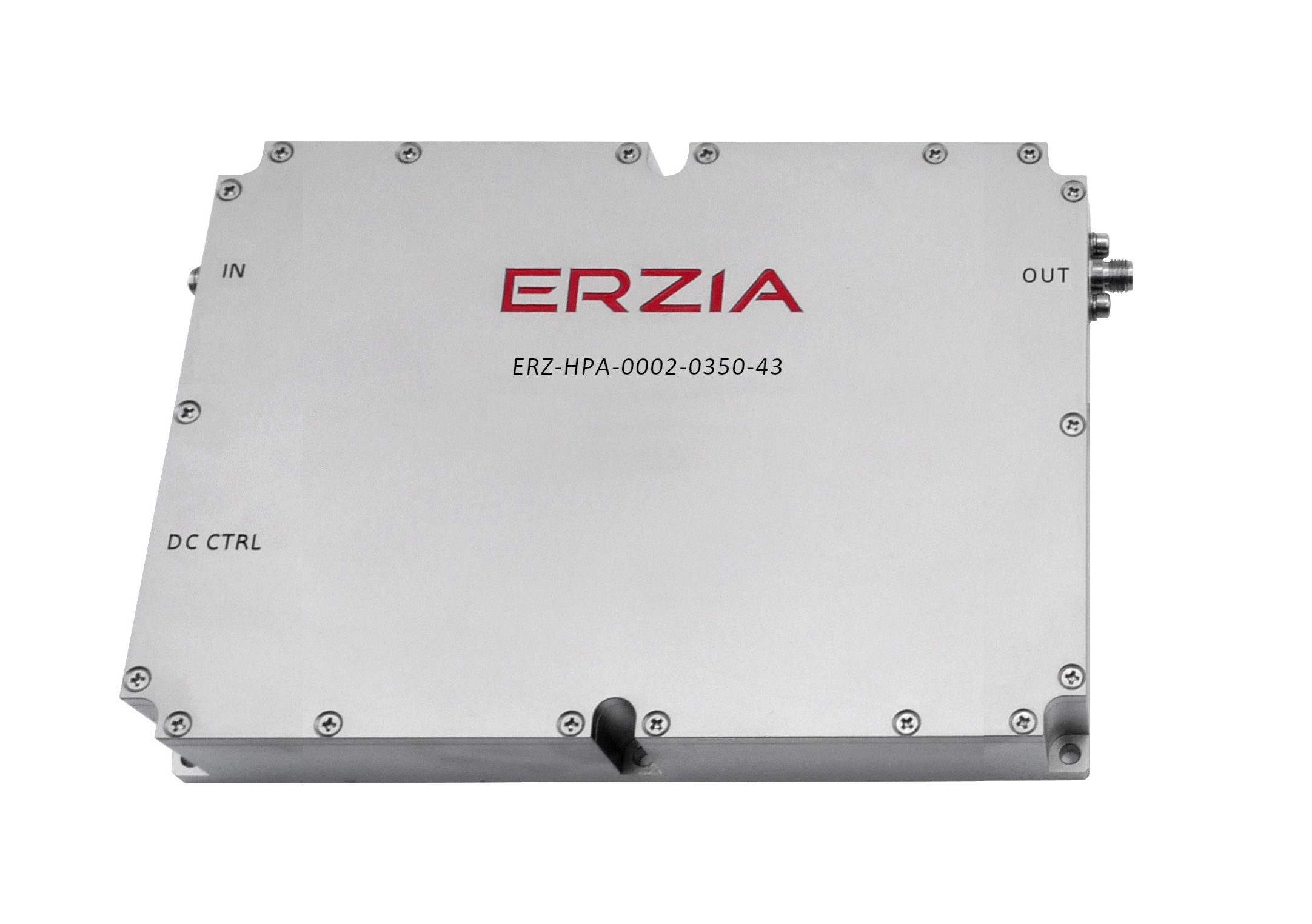

The ERZ-HPA-0002-0350-43 is a GaN High Power Amplifier providing an output power of 20W operating from 20 to 3500 MHz. The compact size and modularity makes it ideal for a wide range of applications, specially for jamming.
| Frequency Start (GHz) | 0.0
|
|---|---|
| Frequency Stop (GHz) | 3.5
|
| Output Power (dBm) | 43
|
| Gain (dB) | 50
|
| Gain flatness (dB) | ±5
|
| VSWR IN | 2.0:1
|
| VSWR OUT | 2.0:1
|
| Power supply (V) | 24±4
|
| Power consumption (W) | 75
|
| Max. Input DC (no damage) (V) | 31
|
| Max. RF input power (dBm) | 13
|
| Temperature (operation) (°C) | -20 to +70
|
| Temperature (storage) (°C) | -55 to +125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Outline Drawing:
Ordering Information:
