Ka Band Power Amplifier
Description:

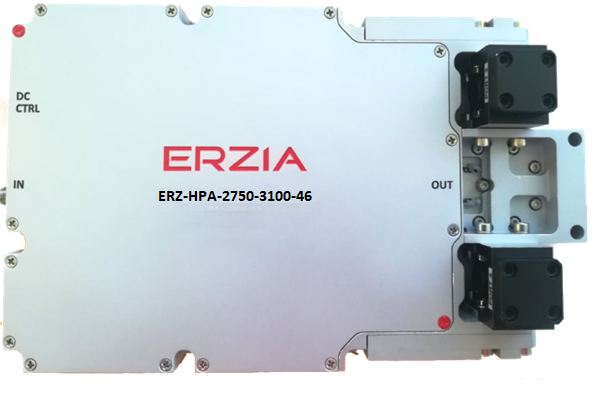

The ERZ-HPA-2750-3100-46 is a High-Power Amplifier providing an output power of 46 dBm and a gain of 75 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 27.5
|
|---|---|
| Frequency Stop (GHz) | 31.0
|
| Output Power (dBm) | 46
|
| Gain (dB) | 75
|
| Gain flatness (dB) | ±3
|
| Noise Figure (dB) | -
|
| VSWR IN | 1.5:1
|
| VSWR OUT | 1.5:1
|
| Power supply (V) | 18 to 36
|
| Current (mA) | 8750
|
| Power consumption (W) | 210
|
| Max. Input DC (no damage) (V) | 36
|
| Max. RF input power (dBm) | +10
|
| Temperature (operation) (°C) | -40 to +75
|
| Temperature (storage) (°C) | -55 to +125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

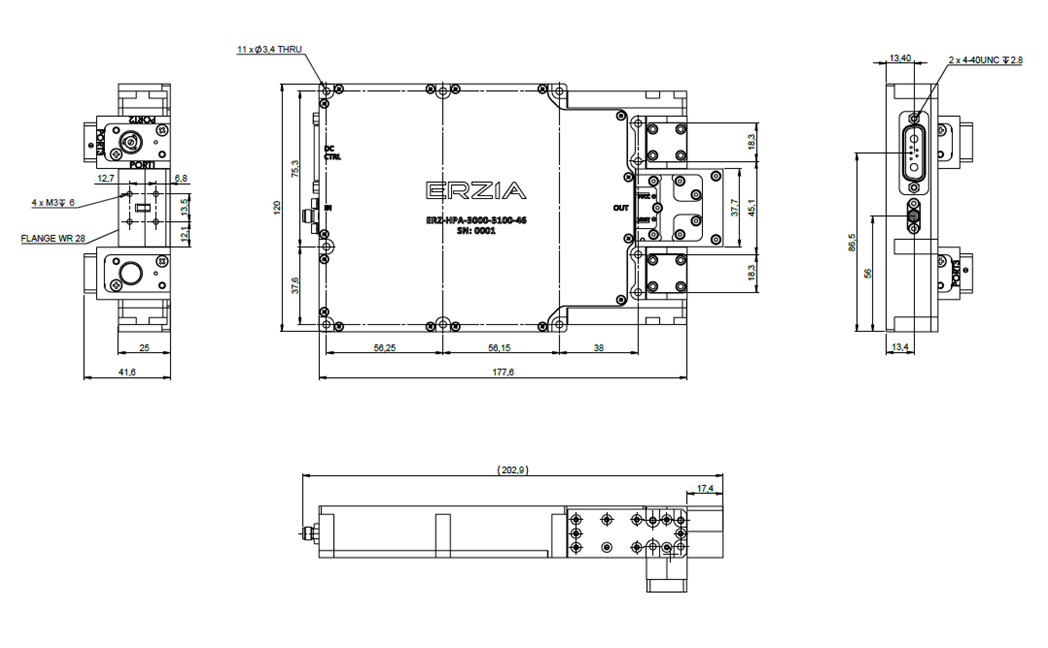

Outline Drawing:
Ordering Information:
