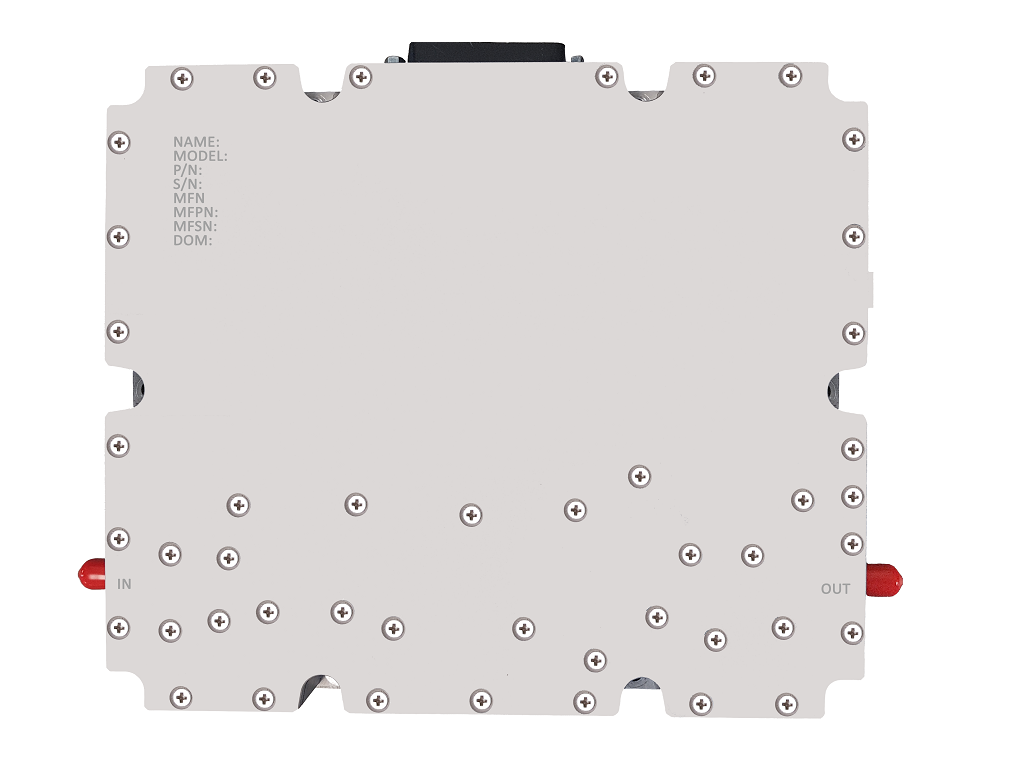

ERZ-HPA-0790-0850-40

X Band Power Amplifier

Description:

The ERZ-HPA-0790-0850-40 is the commercial version of a space qualified module. This High Power Amplifier provides an output power of 10W and a gain of 50 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
7.9 to 8.5
Output Power (dBm):
40
Small Signal Gain (dB):
50
Noise Figure (dB):
11
Bias:
28 ±5 VDC
Package Dimensions:
186x159x32 mm
Connectors:
SMA Female
Frequency Start (GHz)
7.9
Frequency Stop (GHz)
8.5
Output Power (dBm)
40
Gain (dB)
50
Gain flatness (dB)
±1
Noise Figure (dB)
11
VSWR IN
1.1:1
VSWR OUT
1.5:1
Power supply (V)
28±3
Current (mA)
1744
Power consumption (W)
75
Max. Input DC (no damage) (V)
33
Max. RF input power (dBm)
9
Temperature (operation) (°C)
-40 to 75
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

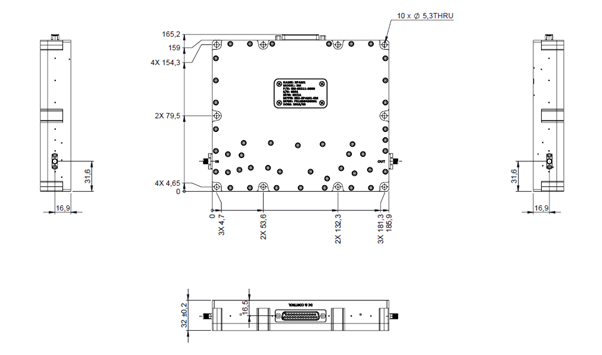

Outline Drawing:
