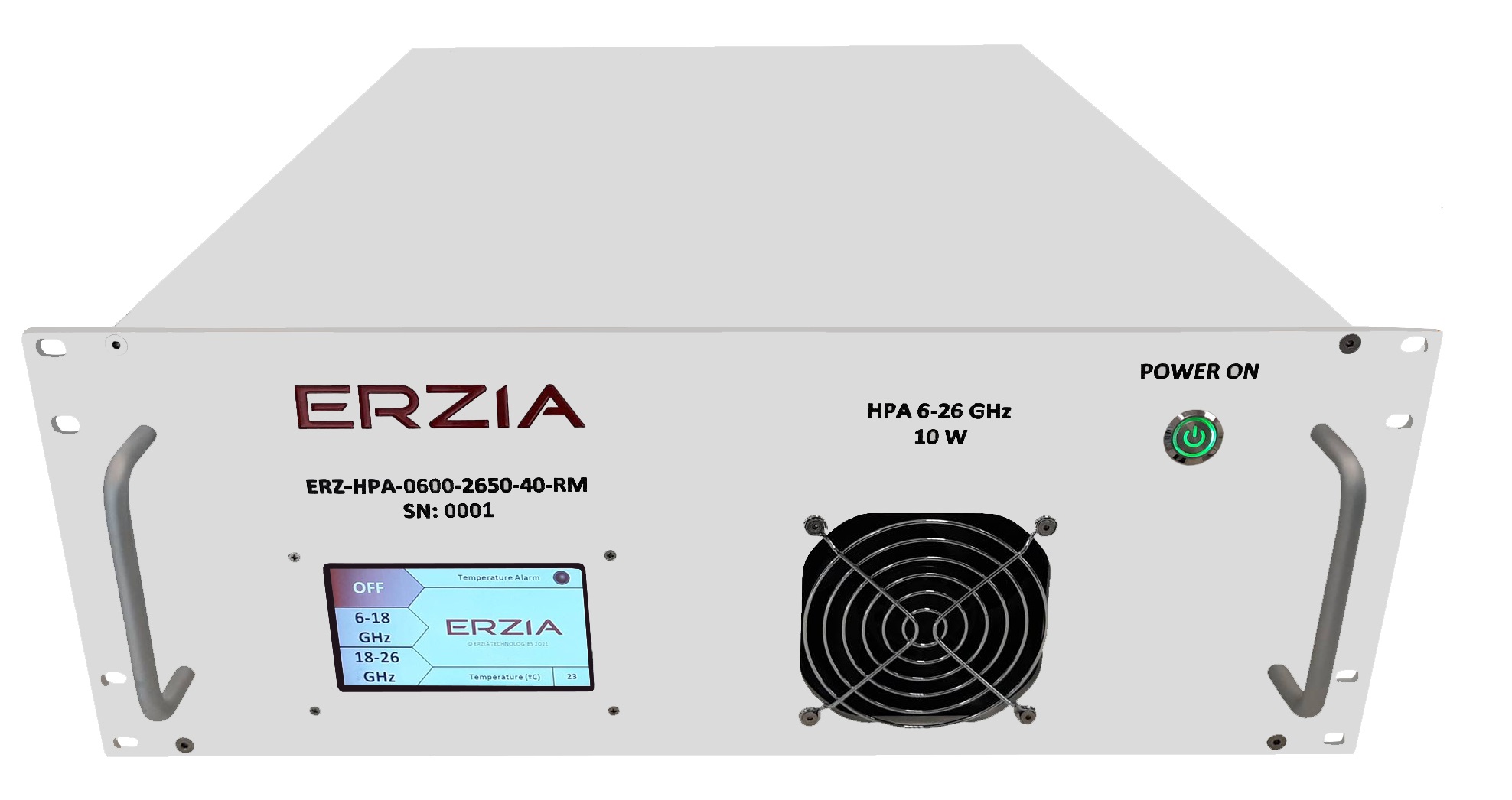

ERZ-HPA-0600-2650-40-RM

Wideband Power Amplifier

Description:

The ERZ-HPA-0600-2650-40-RM is a Wideband High Power Amplifier with two independent bands operating from 6 to 18 GHz and from 18 to 26.5 GHz and providing an output power up to 20W. The module offers different gain levels through a controlled attenuator.

Key Features
Frequency Range (GHz):
6.0 to 27
Output Power (dBm):
43
Small Signal Gain (dB):
43
Bias:
230V AC
Package Dimensions:
19" 4U
Connectors:
2.92 mm Female
Frequency Start (GHz)
6.0
Frequency Stop (GHz)
27
Output Power (dBm)
43
Gain (dB)
34
Gain flatness (dB)
±4
Noise Figure (dB)
-
VSWR IN
1.2:1
VSWR OUT
1.3:1
Power supply (V)
230V AC
Max. RF input power (dBm)
+13
Temperature (operation) (°C)
0 to 40
Temperature (storage) (°C)
0 to 75
Applications:

Industrial / Laboratory
Satcom / Telecom

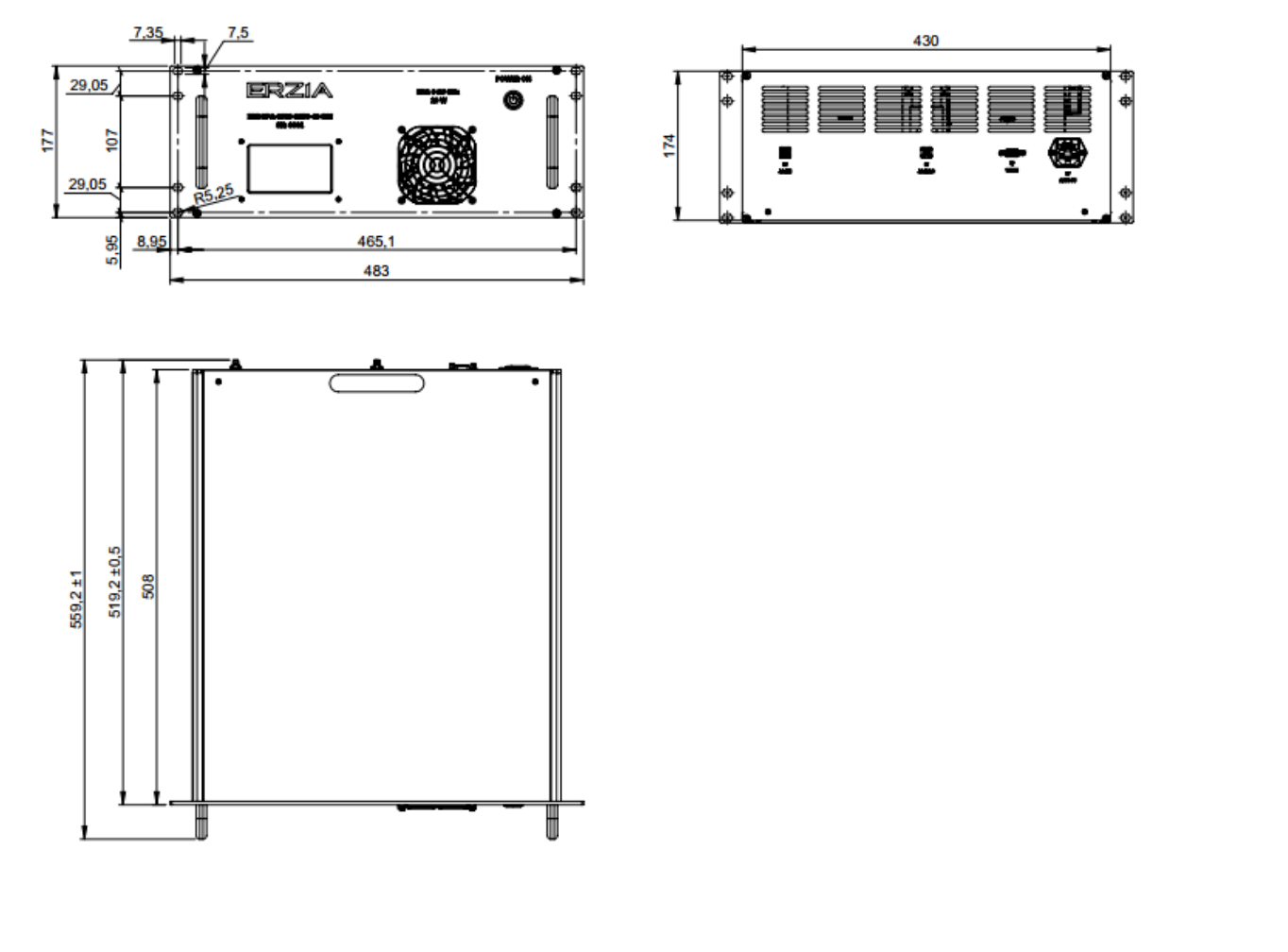

Outline Drawing:
Ordering Information:
