Wideband Power Amplifier
Description:

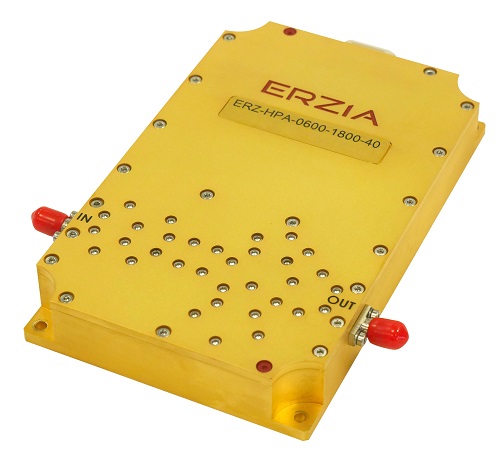

The ERZ-HPA-0600-1800-40 is a WideBand Power Amplifier providing up to 40 dBm with a 10% duty cycle and a gain of 45 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 6.0
|
|---|---|
| Frequency Stop (GHz) | 18.0
|
| Output Power (dBm) | 40
|
| Gain (dB) | 45
|
| Gain flatness (dB) | ±5
|
| Noise Figure (dB) | -
|
| VSWR IN | 1.6:1
|
| VSWR OUT | 1.6:1
|
| Power supply (V) | 32 ±4
|
| Current (mA) | 4000
|
| Power consumption (W) | 88
|
| Max. Input DC (no damage) (V) | 36
|
| Max. RF input power (dBm) | 2
|
| Temperature (operation) (°C) | -35 to 70
|
| Temperature (storage) (°C) | -55 to 125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

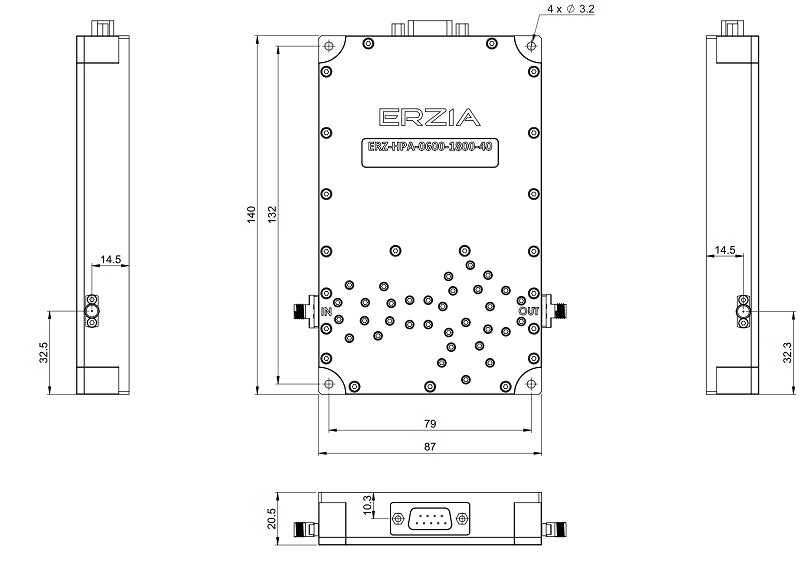

Outline Drawing:
Ordering Information:
