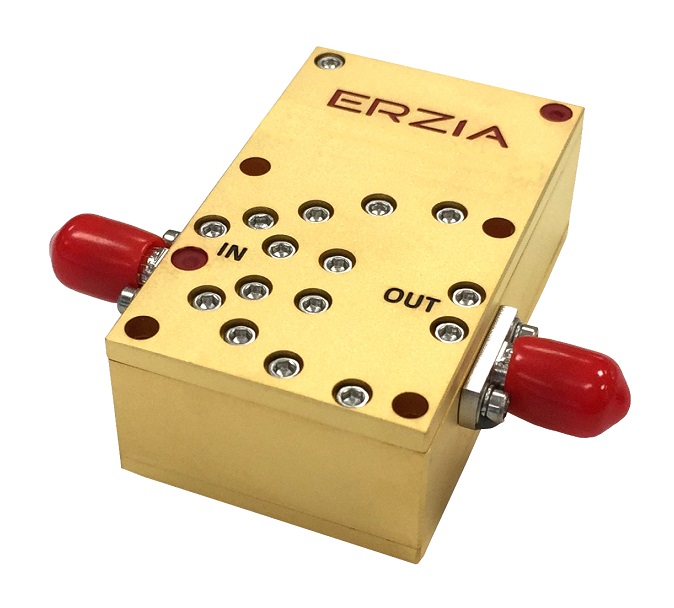

ERZ-HPA-4100-4600-32

Q Band Power Amplifier

Description:

The ERZ-HPA-4100-4600-32 is a High Power Amplifier providing an output power of 32 dBm and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
41.0 to 46.0
Output Power (dBm):
32
Small Signal Gain (dB):
30
Bias:
12 V
Package Dimensions:
30x50x17.5 mm
Connectors:
2.4 mm
Frequency Start (GHz)
41.0
Frequency Stop (GHz)
46.0
Output Power (dBm)
32
Gain (dB)
30
Gain flatness (dB)
±2.5
Noise Figure (dB)
-
VSWR IN
1.5:1
VSWR OUT
2.0:1
Power supply (V)
12±3
Current (mA)
1750
Power consumption (W)
21
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
10
Temperature (operation) (°C)
-45 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

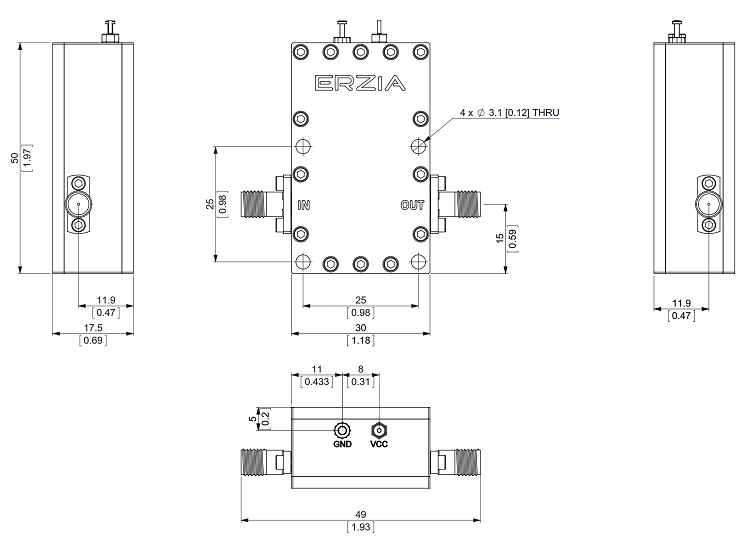

Outline Drawing:
Ordering Information:
