X Band Power Amplifier
Description:

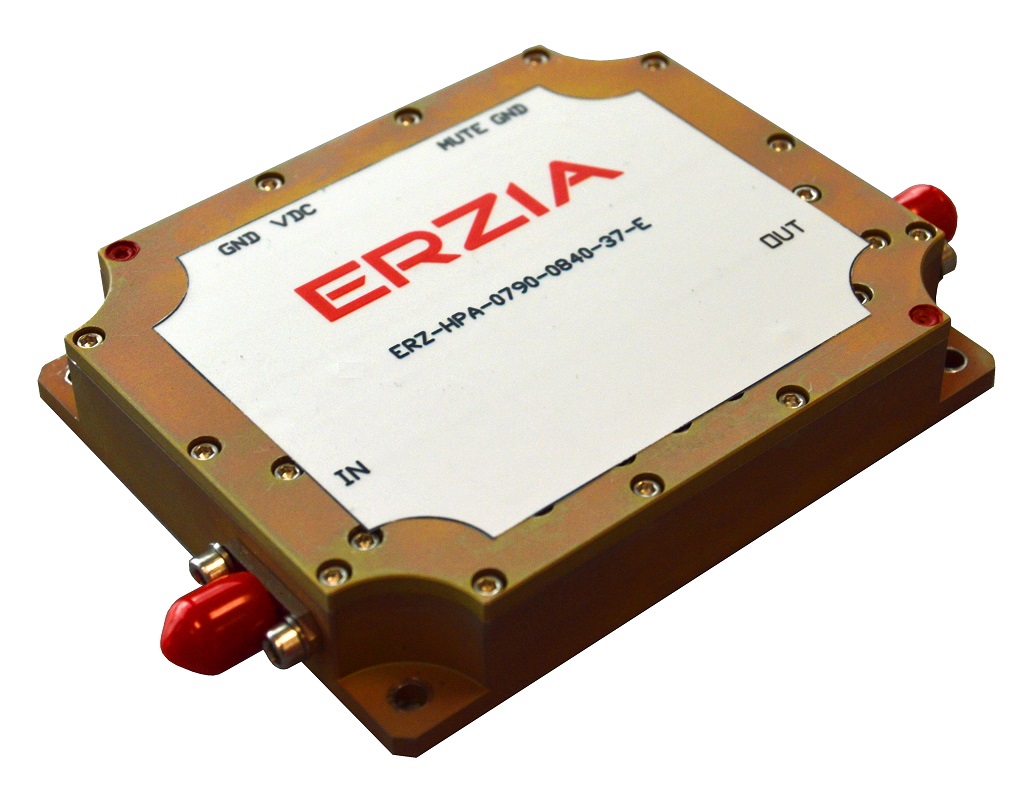

The ERZ-HPA-0790-0840-37-E is a High Power Amplifier providing an output power of 37 dBm and a gain of 36 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 7.9
|
|---|---|
| Frequency Stop (GHz) | 8.4
|
| Output Power (dBm) | 37
|
| Gain (dB) | 36
|
| Gain flatness (dB) | ±1
|
| Noise Figure (dB) | 9
|
| VSWR IN | 1.5:1
|
| VSWR OUT | 1.1:1
|
| Power supply (V) | 24±6
|
| Current (mA) | 1125
|
| Power consumption (W) | 27
|
| Max. Input DC (no damage) (V) | 30
|
| Max. RF input power (dBm) | 10
|
| Temperature (operation) (°C) | -30 to 80
|
| Temperature (storage) (°C) | -50 to 100
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

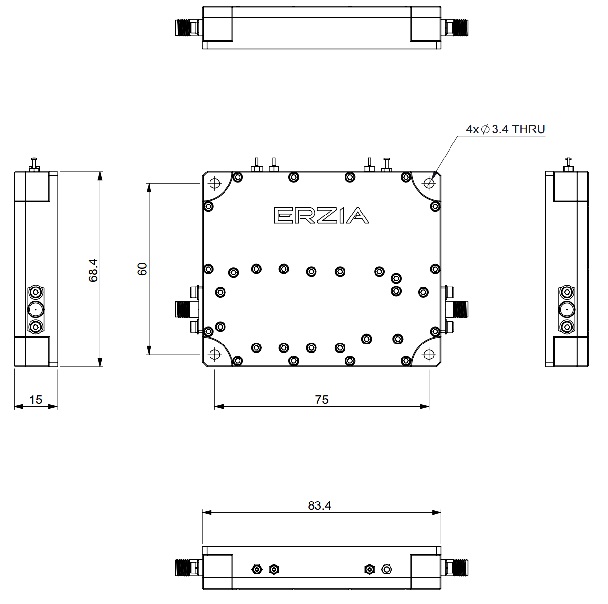

Outline Drawing:
Ordering Information:
