Wideband Power Amplifier
Description:
The ERZ-HPA-1600-3300-24 is a Wideband Band Amplifier providing 25 dBm and a gain of 17 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 16.0
|
|---|---|
| Frequency Stop (GHz) | 33.0
|
| Output Power (dBm) | 25
|
| Gain (dB) | 17
|
| Gain flatness (dB) | ±2.5
|
| Noise Figure (dB) | -
|
| VSWR IN | 1.5:1
|
| VSWR OUT | 1.5:1
|
| Power supply (V) | 12 ±3
|
| Current (mA) | 209
|
| Power consumption (W) | 2.5
|
| Max. Input DC (no damage) (V) | 15
|
| Max. RF input power (dBm) | 6
|
| Temperature (operation) (°C) | -45 to 85
|
| Temperature (storage) (°C) | -55 to 125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

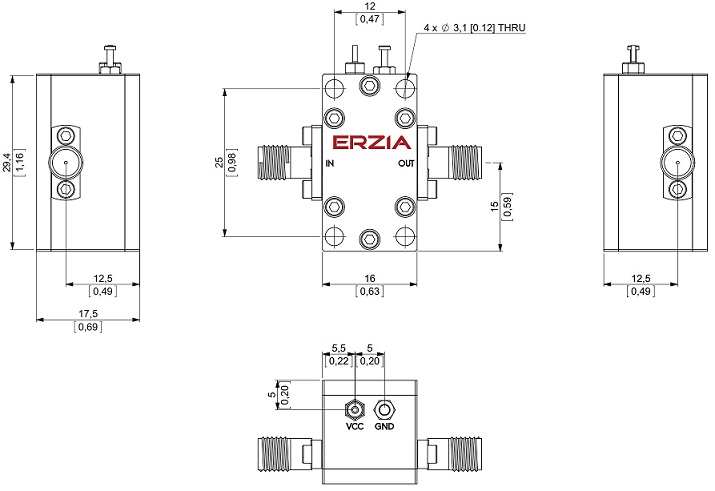

Outline Drawing:
