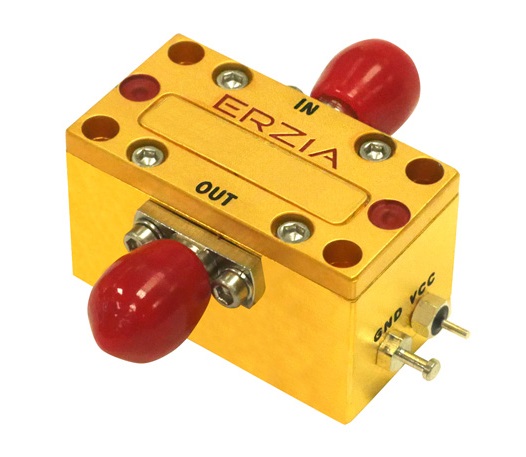

Wideband Power Amplifier
Description:
The ERZ-HPA-2000-3300-20 is a Wideband Amplifier providing up to 20 dBm at saturation and a gain over 22 dB. The compact size and modularity makes it ideal for a wide range of applications.
| Frequency Start (GHz) | 20.0
|
|---|---|
| Frequency Stop (GHz) | 33.0
|
| Output Power (dBm) | 20
|
| Gain (dB) | 22
|
| Gain flatness (dB) | ±1
|
| Noise Figure (dB) | -
|
| VSWR IN | 2.0:1
|
| VSWR OUT | 2.0:1
|
| Power supply (V) | 12 ±4
|
| Current (mA) | 300
|
| Power consumption (W) | 3.6
|
| Max. Input DC (no damage) (V) | 16
|
| Max. RF input power (dBm) | 4
|
| Temperature (operation) (°C) | -35 to 70
|
| Temperature (storage) (°C) | -55 to 125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Outline Drawing:
Ordering Information:
