Wideband Power Amplifier
Description:

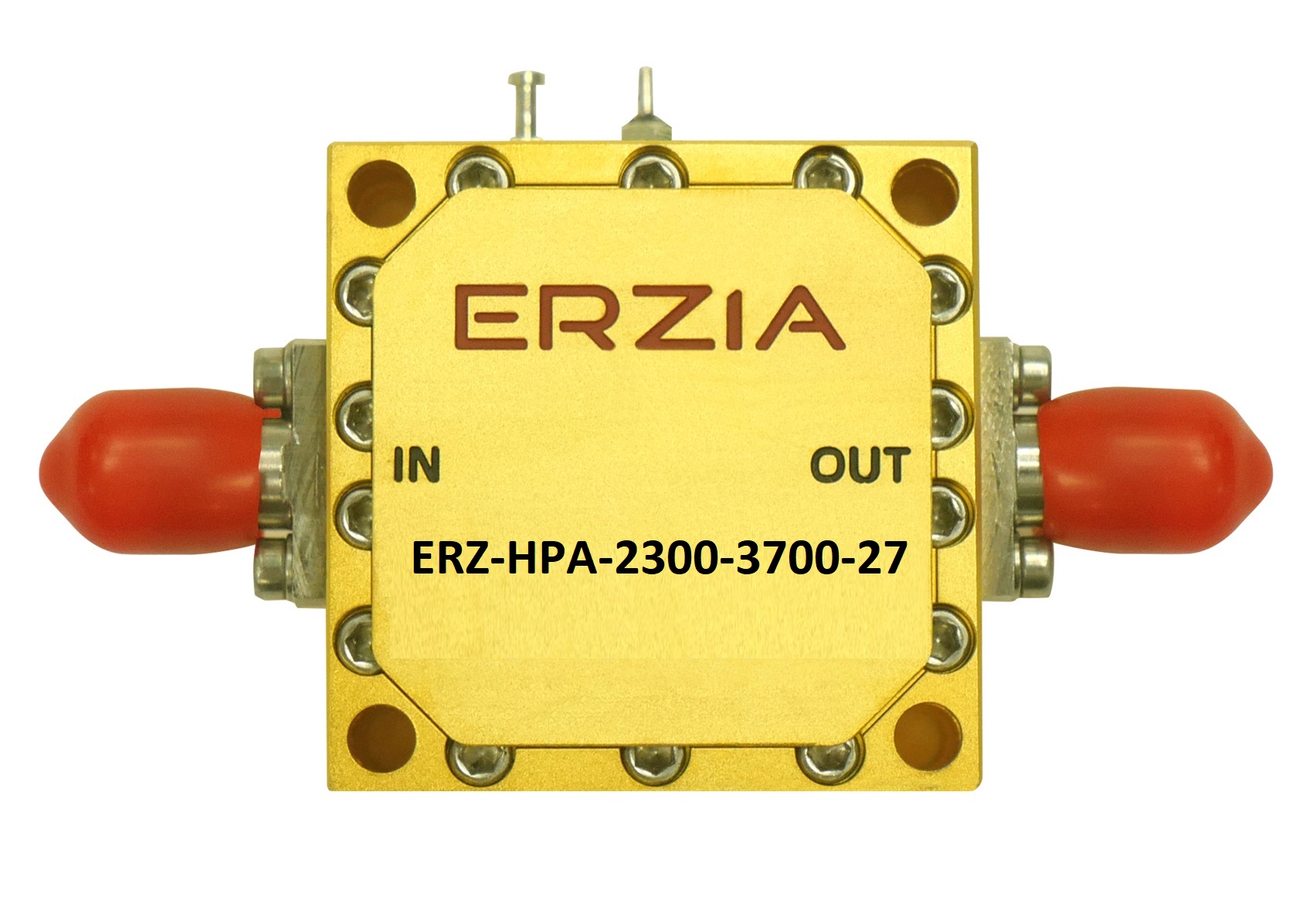

The ERZ-HPA-2300-3700-27 is a Wideband Amplifier providing up to 27 dBm at saturation and a gain of 20 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 23.0
|
|---|---|
| Frequency Stop (GHz) | 37.0
|
| Output Power (dBm) | 27
|
| Gain (dB) | 20
|
| Gain flatness (dB) | ±3
|
| Noise Figure (dB) | -
|
| VSWR IN | 1.9:1
|
| VSWR OUT | 1.6:1
|
| Power supply (V) | 12 ±1
|
| Current (mA) | 750
|
| Power consumption (W) | 7
|
| Max. Input DC (no damage) (V) | 14
|
| Max. RF input power (dBm) | 10
|
| Temperature (operation) (°C) | -35 to 70
|
| Temperature (storage) (°C) | -45 to 85
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

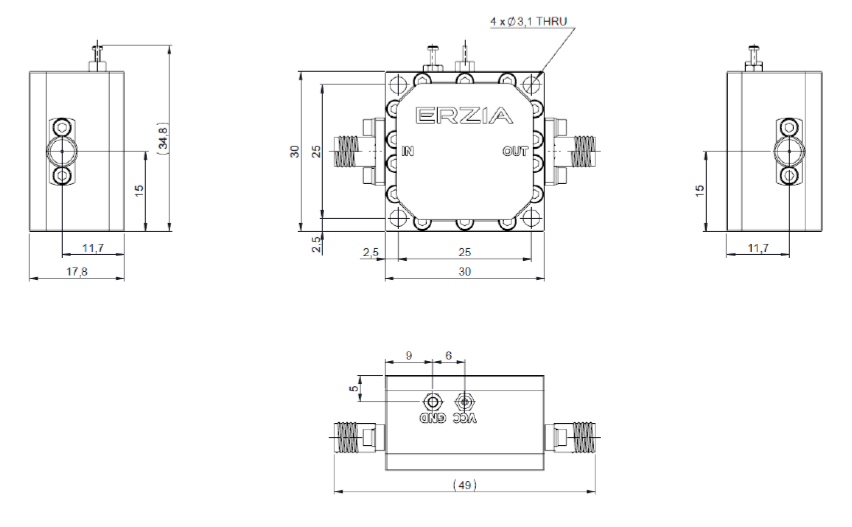

Outline Drawing:
Ordering Information:
