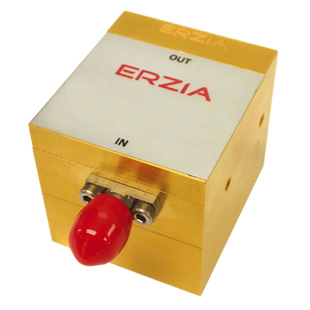

ERZ-HPA-4100-4600-30

Q Band Power Amplifier

Description:

The ERZ-HPA-4100-4600-30 is a Q Band Amplifier providing up to 30 dBm and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
41.0 to 46.0
Output Power (dBm):
30
Small Signal Gain (dB):
30
Bias:
Power supply: +5 V, DC Current: 2.3 A
Package Dimensions:
30x34.5x30 mm
Connectors:
2.4 Female (IN) / WR-22 (OUT)
Frequency Start (GHz)
41.0
Frequency Stop (GHz)
46.0
Output Power (dBm)
30
Gain (dB)
30
Gain flatness (dB)
±2
Noise Figure (dB)
-
VSWR IN
1.8:1
VSWR OUT
2.3:1
Power supply (V)
5
Current (mA)
2400
Power consumption (W)
12
Max. Input DC (no damage) (V)
6.5
Max. RF input power (dBm)
6
Temperature (operation) (°C)
-35 to 50
Temperature (storage) (°C)
-50 to 80
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

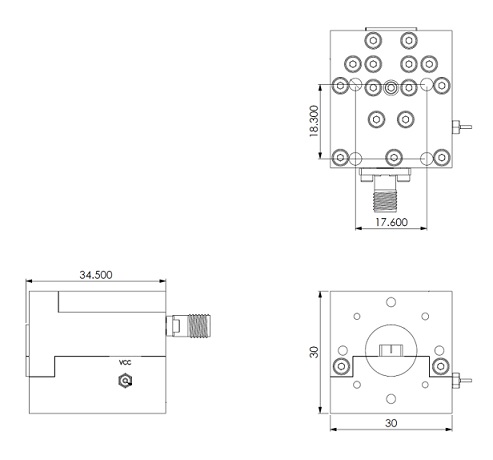

Outline Drawing:
Ordering Information:
