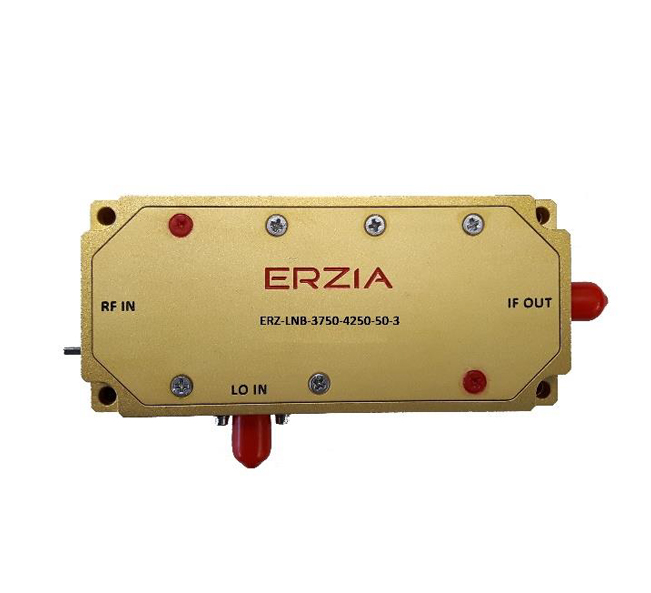

ERZ-LNB-3750-4250-50-3

Key Features:
RF IN (GHz):
37.5-42.5
IF Out (MHz):
1250-1750
Instantaneous BW:
500 MHz
Noise Figure (dB):
2.50
Gain (dB):
Adjustable 45-75
Pout max (dBm):
12.00
Package Dimensions:
104 x 34 x 30 mm
RF Connectors: (I/O):

WR-22/ SMA Female

Specifications:
Input Frequency Range (GHz):
37.5-42.5
Bandwidth (MHz):
500
Output Frequency Range (GHz):
1.25-1.75
Input Power (dBm):
-130
External LO Frequency range (GHz):
36.25-41.25
Noise Figure (dB):

2.5-3.5

LO Input Level:
+8-+16
Small Signal Gain (dB):
50-55
Input VSWR:
1.8:1-2.5:1
Output VSWR:
1.4:1-2.0:1
Input Voltage (V):
15
Power Consumption (W):

1

RF Connectors:
WR-22/ SMA Female IN/OUT
Applications:

Satcom
Aerospace
