ERZ-SW2-0000-4000-3.5

ERZ-SW2-0000-4000-3.5 Switch

Login to see price Get a quote

Description

The ERZ-SW2-0000-4000-3.5 is a wideband SPDT switch with low insertion loss and high isolation. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-SW2-0000-4000-3.5_2

Key Features

  • Frequency Range (GHz): -40
  • Insertion Loss (dB): 3.5
  • Isolation (dB): 40
  • Package Dimensions: 25.4x20.3x10.2
  • Connectors: 2.92 mm Female

Specifications

Frequency Stop (GHz): 40
Insertion Loss (dB): 3.5
Isolation (dB): 40
VSWR: 1.5:1
Switching Time (ns): 40
Max. RF input power (dBm): 24
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

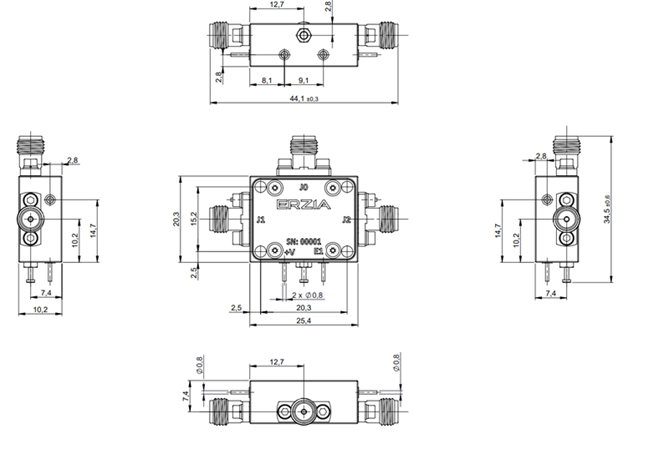

Outline Drawing
