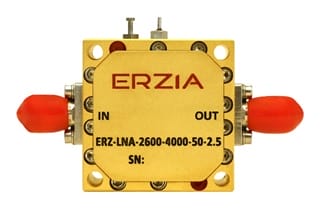

ERZ-LNA-2600-4000-50-2.5 Ka Band LNA

Login to see price Get a quote

Ka Band Low Noise Amplifier

Description

The ERZ-LNA-2600-4000-50-2.5 is a device composed of three stages providing Low Noise Figure throughout the entire operation range. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-2600-4000-50-2.5_2

Key Features

  • Frequency Range (GHz): 26.00-40.00
  • Output Power (dBm): 18
  • Small Signal Gain (dB): 50
  • Noise Figure (dB): 2.5
  • Bias: Power supply: 15±2 V
  • Package Dimensions: 30x30x17,5 mm
  • Connectors: 2.92 mm

Specifications

Frequency Start (GHz): 26.00
Frequency Stop (GHz): 40.00
Output Power (dBm): 18
Gain (dB): 50.00
Gain flatness (dB): ±8
Noise Figure (dB): 2.5
VSWR IN: 1.8:1
VSWR OUT: 1.8:1
Power supply (V): 15 ±2
Current (mA): 166
Power consumption (W): 2.5
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

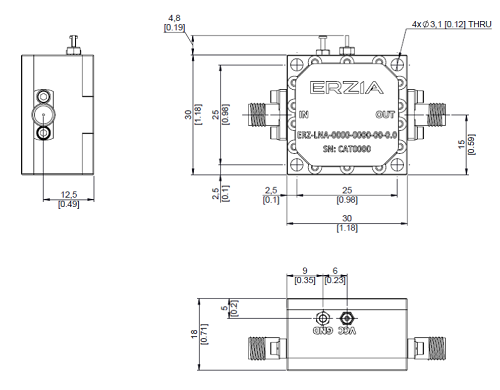

Outline Drawing

Ordering Information
