ERZ-LNA-1800-4000-25-2.5 Wideband LNA

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-1800-4000-25-2.5 is a Low Noise Amplifier providing a gain of 25 dB with a noise figure of 2.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download

PDF IconERZ-LNA-1800-4000-25-2.5_2

Key Features

  • Frequency Range (GHz): 18.00-40.00
  • Output Power (dBm): 12
  • Small Signal Gain (dB): 25
  • Noise Figure (dB): 2.5
  • Bias: 12±3 VDC
  • Package Dimensions: 16.3x17.8x7.3 mm
  • Connectors: 2.92 mm Female

Specifications

Frequency Start (GHz): 18.00
Frequency Stop (GHz): 40.00
Output Power (dBm): 12
Gain (dB): 25.00
Gain flatness (dB): ±1.5
Noise Figure (dB): 2.5
VSWR IN: 1.5:1
VSWR OUT: 1.5:1
Power supply (V): 12±3
Current (mA): 33
Power consumption (W): 0.4
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

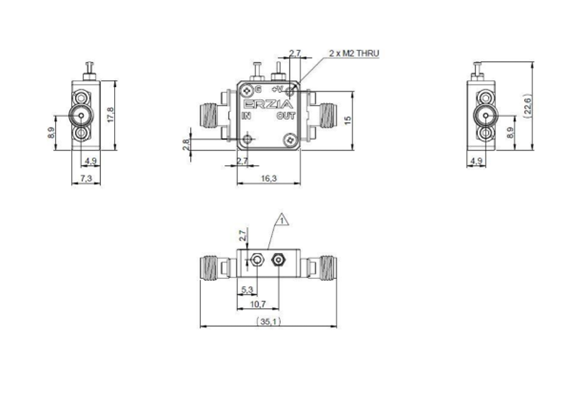

Outline Drawing
