ERZ-LNA-0950-1800-30-3.5

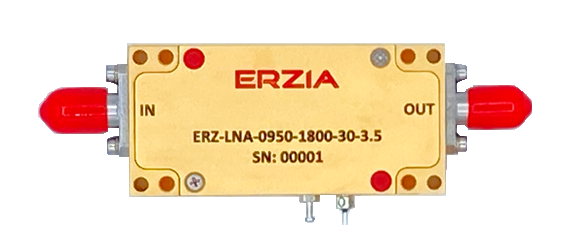

PHOTO_ERZ-LNA-0950-1800-30-3.5

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

Download

PDF IconERZ-LNA-0950-1800-30-3.5

Key Features

  • Frequency Range (GHz): 9.50-18.00
  • Output Power (dBm): 13
  • Small Signal Gain (dB): 33
  • Noise Figure (dB): 2.5
  • Bias: 12 ± 3
  • Package Dimensions: 53.34 x 25.4 x 9.65
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 9.50
Frequency Stop (GHz): 18.00
Output Power (dBm): 13
Gain (dB): 33.00
Gain flatness (dB): ±1.2
Noise Figure (dB): 2.5
VSWR IN: 2.0:1
VSWR OUT: 2.0:1
Power supply (V): 12 ± 3
Current (mA): 100
Power consumption (W): 1.1
Temperature (operation) (°C): -45 to +85
Temperature (storage) (°C): -55 to +125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

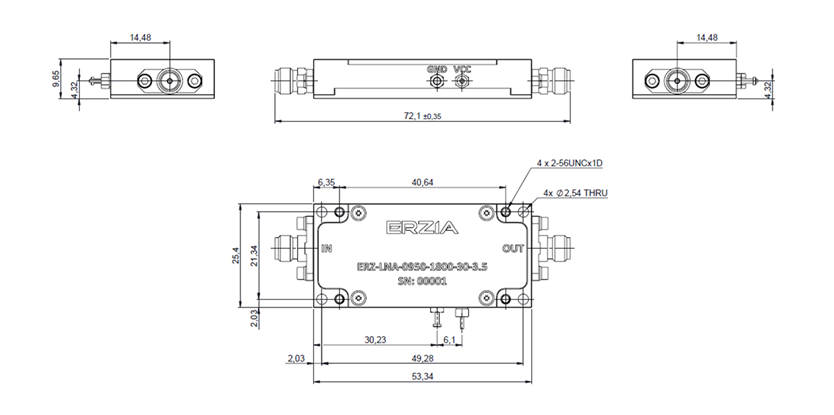

Outline Drawing

Ordering Information
