ERZ-LNA-0200-1800-23-2.5

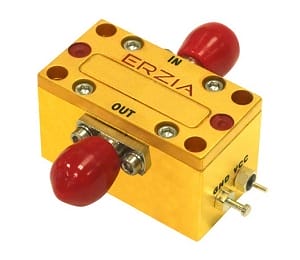

ERZ-LNA-0200-1800-23-2.5 Wideband LNA

Login to see price Get a quote

Wideband Low Noise Amplifier

Description

The ERZ-LNA-0200-1800-23-2.5 is a Low Noise Amplifier that provides a Noise Figure of 2.5 dB with a Gain of 22 dB.

Download

PDF IconERZ-LNA-0200-1800-23-2.5_0

Key Features

  • Frequency Range (GHz): 2.00-18.00
  • Output Power (dBm): 15
  • Small Signal Gain (dB): 23
  • Noise Figure (dB): 2.5
  • Bias: Power supply: 12 V
  • Package Dimensions: 16x30x17,5 mm
  • Connectors: SMA Female

Specifications

Frequency Start (GHz): 2.00
Frequency Stop (GHz): 18.00
Output Power (dBm): 15
Gain (dB): 22.00
Gain flatness (dB): ±1.5
Noise Figure (dB): 2.5
VSWR IN: 3.5:1
VSWR OUT: 1.5:1
Power supply (V): 12 ±3
Current (mA): 250
Power consumption (W): 2
Temperature (operation) (°C): -45 to 85
Temperature (storage) (°C): -55 to 125

Applications

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

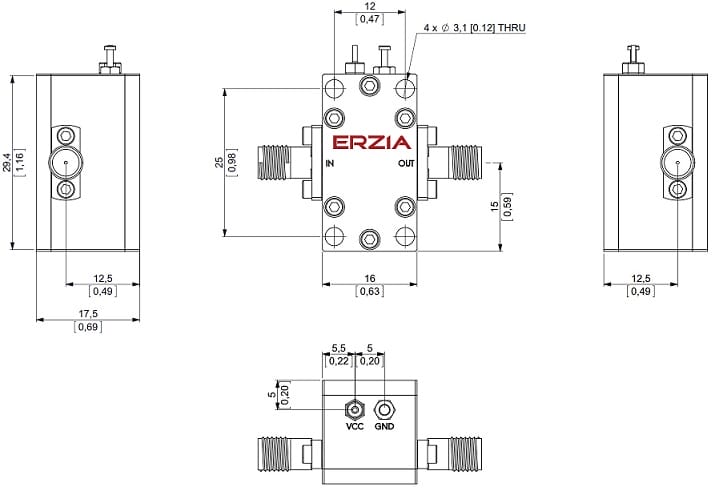

Outline Drawing

Ordering Information
