Ka Band Power Amplifier
Description:
The ERZ-HPA-2700-3100-43-P is a drop in Ka band High Power Amplifier based on GaN technology that provides 20 W in saturation. The compact size makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 27.0
|
|---|---|
| Frequency Stop (GHz) | 31
|
| Output Power (dBm) | 43
|
| Gain (dB) | 30
|
| Gain flatness (dB) | ±2
|
| VSWR IN | 2.0:1
|
| VSWR OUT | 2.5:1
|
| Power supply (V) | Vd1= +5, Vd2= +22, Vg= -5
|
| Power consumption (W) | 120 @Psat
|
| Max. Input DC (no damage) (V) | Vd1 = +6, Vd2 = +22
|
| Max. RF input power (dBm) | +23
|
| Temperature (operation) (°C) | -40º to 85ºC
|
| Temperature (storage) (°C) | -55º to 125ºC
|

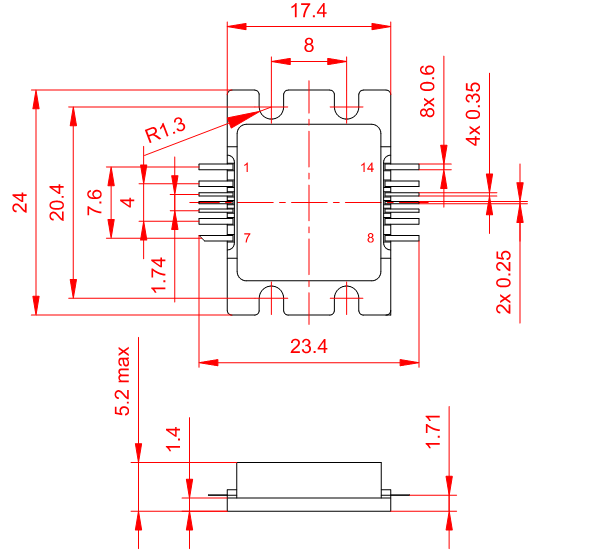

Outline Drawing:
Ordering Information:
