ERZ-HPA-0002-0600-42

Login to see priceGet a quote

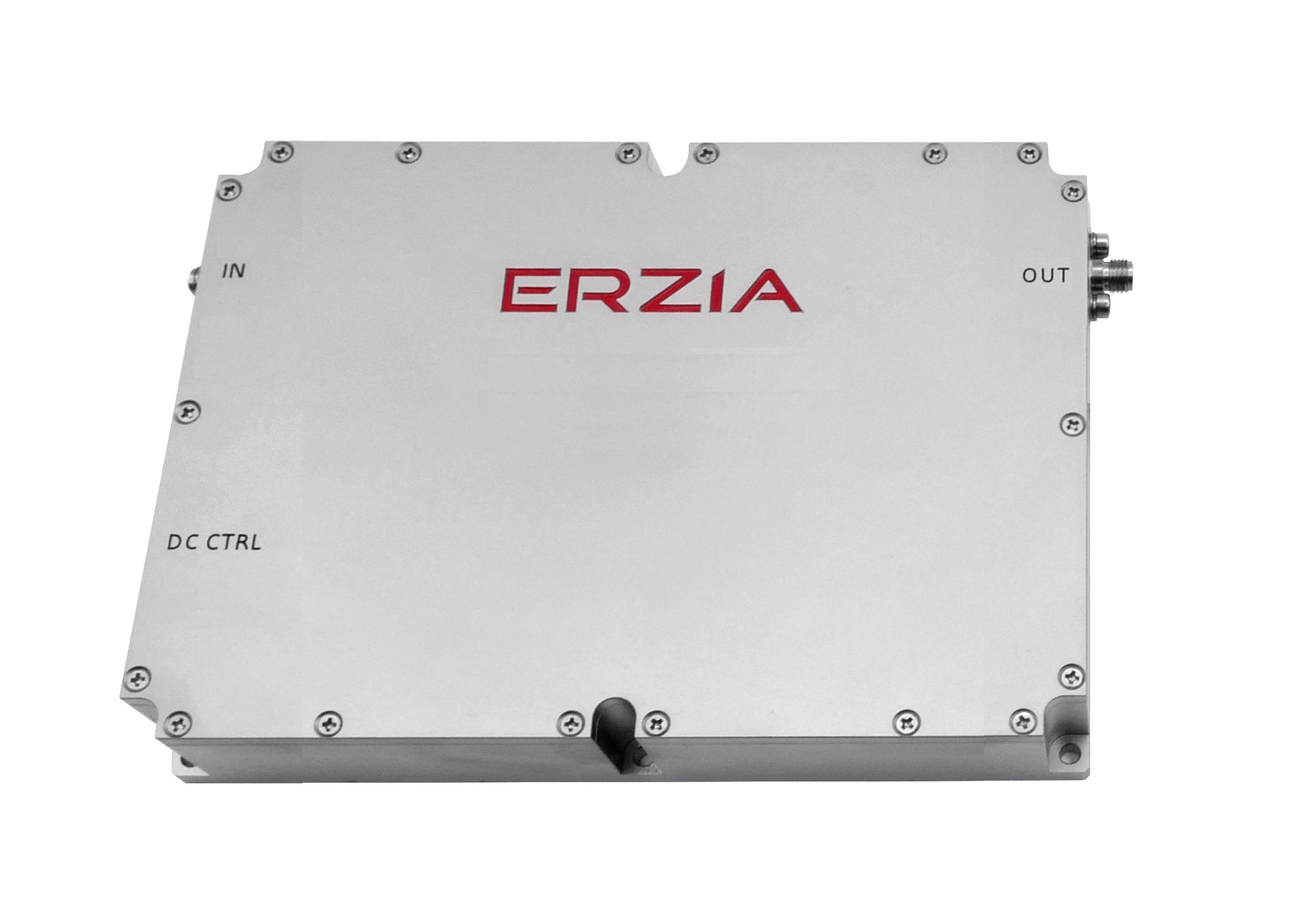

Wideband Power Amplifier

Description:

The ERZ-HPA-0002-0600-42 is a High Power Amplifier providing an output power of 41 dBm and a gain of 40 dB. The compact size and modularity makes it ideal for a wide range of applications.

Download:
PDF icon ERZ-HPA-0002-0600-42.pdf
Key Features
Frequency Range (GHz):
0.0 to 6.0
Output Power (dBm):
41
Small Signal Gain (dB):
40
Noise Figure (dB):
7
Bias:
24±4
Package Dimensions:
160 x 115 x 27 mm
Output Saturation Power (dBm):
41.00
Connectors:
SMA-F
Frequency Start (GHz)
0.0
Frequency Stop (GHz)
6.0
Output Power (dBm)
41
Gain (dB)
40
Gain flatness (dB)
2
Noise Figure (dB)
7
VSWR IN
2.0:1
VSWR OUT
3.0:1
Power supply (V)
24±4
Current (mA)
3300
Power consumption (W)
80
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
