ERZ-HPA-2800-3000-29

Ka Band Power Amplifier

Description:

The ERZ-HPA-2800-3000-29 is a Ka Band Amplifier providing up to 29 dBm at saturation and a gain of 18 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
28,00 to 30,00
Psat (dBm):
29
Small Signal Gain (dB):
18,00
Bias:
Power supply: +12V
Package Dimensions:
30x50x17.5 mm
Output Saturation Power (dBm):
29.00
Connectors:
2.92 mm Female
Frequency Start (GHz)
28,00
Frequency Stop (GHz)
30,00
Psat (dBm)
29
Gain (dB)
18,00
Gain flatness (dB)
±1.5
NF (dB)
-
VSWR IN
2.0:1
VSWR OUT
2.0:1
Power supply (V)
12±4
Current (mA)
375
Power consumption (W)
4.5
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
20
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

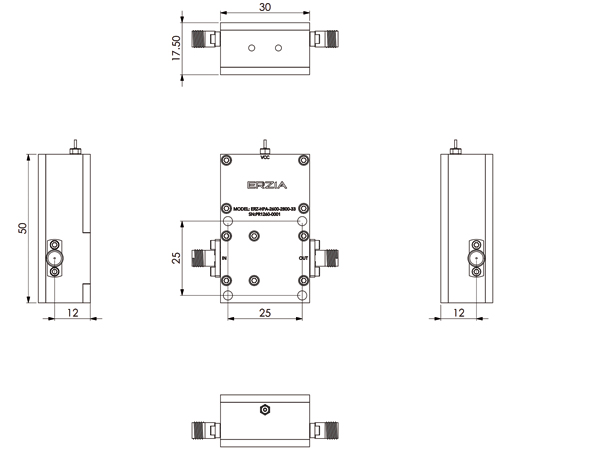

Outline Drawing:
Ordering Information:
